A519 EFW Pipe
video

A519 EFW Pipe

A519 This specification covers a wide range of grades of carbon and alloy steel mechanical tubing, whether hot or cold worked. The tubular product shall be made in the following shapes: round, square, rectangular and special cross sections.
Send Inquiry
Chat Now
Product Introduction

A519 EFW Welded Pipe Supplier-GNEE

A519 capacitor welded pipe has better joint strength and sealing performance, can withstand higher pressure and viscosity fluid transportation, can be used for pressure pipeline welding.



Alloy Steel Pipe and Tube Specification
Specifications ASTM A335, A213, A691, A519, A209 / ASME SA335, SA213, SA691, SA519, SA209
Dimensions ASTM, ASME and API
Size Range ¼˝– 24˝
Outer Diameter 6-2500mm; WT:1-200mm
Thickness 0.3mm – 50 mm
Schedule SCH 10, SCH20, SCH30, SCH40, STD, SCH60, XS, SCH80, SCH120, SCH140, SCH160, XXS, XH and XXH
Type ERW / Welded / Fabricated / LSAW Pipes
Length Single Random, Double Random & Cut Length.
Form Round, Square, Rectangular, Hydraulic Etc.
End Plain End, Beveled End, Treaded



A519 Efw Welded Pipe Chemical Composition

Grade
Designation

Chemical Composition Limits, %

CarbonA

ManganeseB

Phosphorus,B
max

Sulfur,B
max



MT 1010

0.05–0.15

0.30–0.60

0.040

0.050

MT 1015

0.10–0.20

0.30–0.60

0.040

0.050

MT X 1015

0.10–0.20

0.60–0.90

0.040

0.050

MT 1020

0.15–0.25

0.30–0.60

0.040

0.050

MT X 1020

0.15–0.25

0.70–1.00

0.040

0.050



A519 ERW and EFW Pipe Size Table

OD(mm)

Wall Thickness Unit(mm)



2

2.5

3

3.5

4

4.5

5

6

6.5-7

7.5-8

8.5-9

9.5-10

11

12

Φ25-Φ28

●

●

●

●

●

●

















Φ32



●

●

●

●

●

●















Φ34-Φ36



●

●

●

●

●

●















Φ38



●

●

●

●

●

●















Φ40





●

●

●

●

●















Φ42





●

●

●

●

●















Φ45





●

●

●

●

●

●













Φ48-Φ60





●

●

●

●

●

●

●











Φ63.5







●

●

●

●

●

●

●









Φ68-Φ73









●

●

●

●

●

●









Φ76









●

●

●

●

●

●

●

●

●

●

Φ80









●

●

●

●

●

●

●

●

●

●

Φ83









●

●

●

●

●

●

●

●

●

●

Φ89









●

●

●

●

●

●

●

●

●

●

Φ95









●

●

●

●

●

●

●

●

●

●

Φ102









●

●

●

●

●

●

●

●

●

●

Φ108









●

●

●

●

●

●

●

●

●

●

Φ114











●

●

●

●

●

●

●

●

●

Φ121











●

●

●

●

●

●

●

●

●

Φ127











●

●

●

●

●

●

●

●

●

Φ133











●

●

●

●

●

●

●

●

●

Φ140













●

●

●

●

●

●

●

●

Φ146













●

●

●

●

●

●

●

●

Φ152













●

●

●

●

●

●

●

●

Φ159













●

●

●

●

●

●

●

●

Φ168













●

●

●

●

●

●

●

●

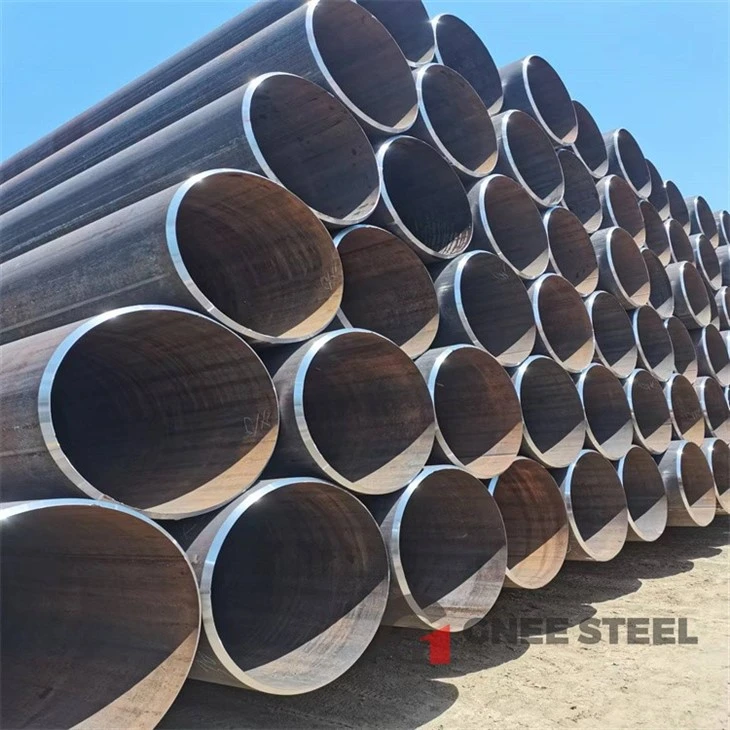

GNEE A519 Pipe in Stock

 A519 efw pipeA519 Welded Steel Pipe
