A269 Welded Ferritic Tubing
Ferritic steel refers to low-carbon chromium stainless steel with a chromium content greater than 14%, and any carbon-containing chromium stainless steel with a chromium content greater than 27%. Belonging to this category are Crl7, Cr17Mo2Ti, Cr25, Cr25Mo3Ti, Cr28, etc.
Send Inquiry
Chat Now
Product Introduction
The structure of ferritic steel in the quenched (solid solution) state is ferrite, while a small amount of carbides and intermetallic compounds can be seen in the structure of the annealed and aged state.
A269 Stainless Steel Welded Pipe Specification
| Standard | ASTM A268, ASME SA268 |
|---|---|
| Tube Type | Both Welded And Seamless |
| Grades | ASTM A268 TP 410, ASTM A268 TP 430, ASTM A268 TP 439 |
| Outside Diameter | 1/4″ (6.25mm) To 8″ (203mm) |
| Wall Thickness | 0.02″ (0.5mm) To 0.5″(12mm) |
| Application | Heat Exchanger, Heater, Condenser |
ASTM A269 Stainless Steel Tubing Sizes Tolerance
| Outside Diameter, In.[Mm] | OD Tolerance, In.[Mm] | Wall Thickness, % | Thin Wall Tubes |
|---|---|---|---|
| Up To1⁄2, [12.7], Excl | ±0.005 [0.13] | ±15 | |
| 1⁄2 To 11⁄2 [12.7 To 38.1], Excl/Td> | ±0.005 [0.13] | ±10< | Less Than 0.065 In. [1.6 Mm] Nominal |
| 11⁄2 To 31⁄2 [38.1 To 88.9], Excl | ±0.010 [0.25] | ±10 | Less Than 0.095 In. [2.4 Mm] Nominal |
| 31⁄2 To 51⁄2 [88.9 To 139.7], Excl | ±0.015 [0.38] | ±10 | Less Than 0.150 In. [3.8 Mm] Nominal |
| 51⁄2 To 8 [139.7 To 203.2], Incl | ±0.030 [0.76] | ±10 | Less Than 0.150 In. [3.8 Mm] Nominal |
ASTM A268 Welded Tube Tensile Requirements
| Grade And UNS Designation | Tensile Strength, Min, | Yield Strength, Min, | ElongationA B , In 2 In. Or 50 Mm, |
|---|---|---|---|
| Ksi [MPa] | Ksi [MPa] | Min, % | |
| TP405 S40500 | 60 [415] | 30 [205] | 20 |
| … S40800 | 55 [380] | 30 [205] | 20 |
| TP410 S41000 | 60 [415] | 30 [205] | 20 |
| TP429, TP430, And TP430 Ti S429000, S 43000, And S 43036 | 60 [415] | 35 [240] | 20 |
| TP443 S44300 | 70 [485] | 40 [275] | 20 |
| TP446-1 S44600 | 70 [485] | 40 [275] | 18 |
| TP446-2 S44600 | 65 [450] | 40 [275] | 20 |
| TP409 S40900 | 55 [380] | 25 [170] | 20 |
| TP439 S43035 | 60 [415] | 30 [205] | 20 |
| S43932 | 60 [415] | 30 [205] | 20 |
| … S41500 | 115 [795] | 90 [620] | 15 |

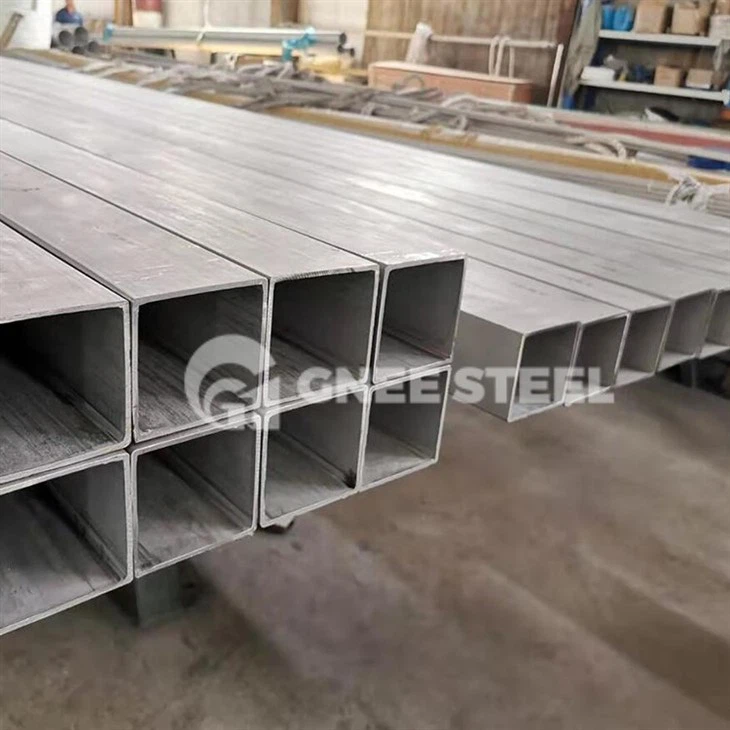

Square Welded Pipe
