ASTM A409 Welded Large Diameter Stainless Steel Pipe
Austenitic stainless steels are mainly used for corrosion resistance purposes and heat treatment has a significant impact on them. The corrosion and acid resistance of austenitic stainless steel relies heavily on surface passivation, and if this behaviour of surface passivation is not maintained, it will corrode. Therefore, austenitic stainless steel is not completely stainless, it is only for oxidising and acidic environments. It is not strongly resistant to specific ions.
| Specification: | Welded Large Diameter Austenitic Steel Pipe for Corrosive or High Temperature Service |
| Application： | For Corrosive or High-Temperature Service |
| Grade: | TP201/LN TP304/L 309S 310S 316/L 317 321 347 348 Chromium and Chromium-Nickel Steel of A240 |
| Manufacture: | Welded Process |
| Section of Shape: | Round |
| Outside Diameter: | DN350 to DN750 according to ASTM A999 |
| Wall Thickness: | According to ASTM A999 or Specified |
| Length of Pipe: | Fixed 5.8/6 Meters or SRL/DRL or Specified |
| Permissible Variations: | According to ASTM A999 Standard |
| End of Finish: | Plain & Beveled End &THD with Coupling |
| Heat treatment: | Heat Treated |
| Surface: | Bare or Coated Protective Paint or Anticorrosive Coating |
| MTC: | Mill Test Certificate according to ASTM A999/EN 10204 3.1B |
| Marking & Packing: | According to ASTM A999 or Specified |
| MOQ: | 5 Tons |
| Transportation: | FCL&LCL by sea |
| Delivery: | 10-15 days after signed contract |
| Payment: | L/C or T/T or D/P or O/A |
ASTM A409/A409M Equivalent
| Grade | Standard | Area | Content |
|---|---|---|---|
| A409 S31254 | ASTM A409/A409M | America | Corrosion resistant or high temperature resistant large diameter welded austenitic stainless steel tube |
| A409 Type 317 | ASTM A409/A409M | America | Corrosion resistant or high temperature resistant large diameter welded austenitic stainless steel tube |
| A409 Type 310S | ASTM A409/A409M | America | Corrosion resistant or high temperature resistant large diameter welded austenitic stainless steel tube |
| A409S31700 | ASTM A409/A409M | America | Corrosion resistant or high temperature resistant large diameter welded austenitic stainless steel tube |
| A409 Type 348 | ASTM A409/A409M | America | Corrosion resistant or high temperature resistant large diameter welded austenitic stainless steel tube |
| A409 Type 347 | ASTM A409/A409M | America | Corrosion resistant or high temperature resistant large diameter welded austenitic stainless steel tube |
| A409 S30815 | ASTM A409/A409M | America | Corrosion resistant or high temperature resistant large diameter welded austenitic stainless steel tube |
| A409S20100 | ASTM A409/A409M | America | Corrosion resistant or high temperature resistant large diameter welded austenitic stainless steel tube |
| A409S31727 | ASTM A409/A409M | America | Corrosion resistant or high temperature resistant large diameter welded austenitic stainless steel tube |
| A409 S30940 | ASTM A409/A409M | America | Corrosion resistant or high temperature resistant large diameter welded austenitic stainless steel tube |

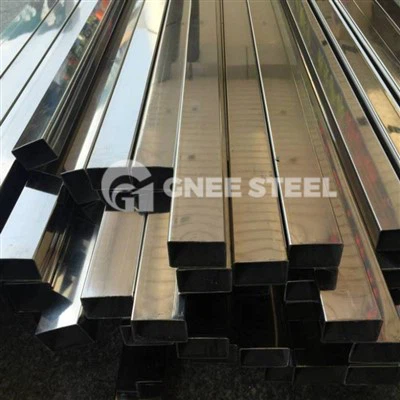

Square Welded Pipe
