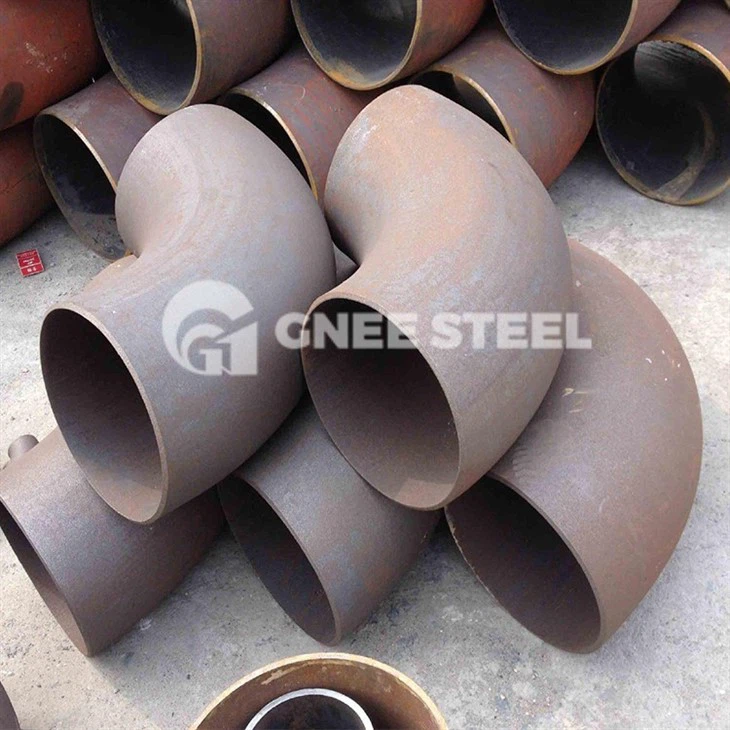

A105 Carbon Steel Forged Fittings

A105 is the U.S. ASTM standard number, A on behalf of the ordinary carbon structural steel, pipeline system, generally A105 can replace the 20, but 20 can not completely replace the A105, because the strength difference is still large. But A105 stress corrosion cracking (SCC) resistance is slightly worse than 20.

A105 Fittings Specification

Standard	ASTM / ASME A105/ A105N/ A694 F42/46/52/56/60/65/70 / A350 LF3/ A350 LF2
Sizes	1/2" TO 4"
Pressure Rating	2000#, 3000#, 6000#, 9000#
Grade	F42 / F46 / F52 / F56 / F60 / F65 / F70
Range	150#, 300#, 400#, 600#, 900#, 1500# & 2500#.
Type	Socketweld Fittings, Threaded Fittings
Form	Tee, Union, Full Coupling, Half Coupling,Elbow 45 Deg & 90 Deg, Swage Nipple, Cross, Cap, Plug Bush

ASTM A105 Mechanical Properties Table

Tensile Strength min.		Yield Strength min.		Elongation min.	Reduction of Area, min.	Hardness
MPa	ksi	MPa	ksi	%	%	HBW
485	70	250	36	22	30	137-187

ASME SA 105 fittings Equivalent Material Grade

Fitting Class	Fitting Connection	Pipe Equivalent
		Schedule No.	Wall Designation
2000	NPT	Sch. 80	XS
3000	NPT	Sch. 160	–
6000	NPT	–	XXS
3000	SW	Sch. 80	XS
6000	SW	Sch. 160	–
9000	SW	–	XXS

Weight of ASTM A105 fittings

SIZE	A	B	QTY	WEIGHT
¼	0.81	0.88	160	0.20
⁄	0.97	1.00	130	0.26
½	1.12	1.31	100	0.57
¾	1.31	1.5	75	0.71
1	1.5	1.81	40	1.08
1 ¼	1.75	2.19	25	1.68
1 ½	2.00	2.44	18	2.38
2	2.38	2.97	10	3.55
2 ½	3.00	3.62	4	6.22
3	3.38	4.31	2	10.36
4	4.19	5.75	1	23.91

carbon steel forged pipe fittings
