Alloy Steel ASTM A234 Grade WP5
A234 is an American standard material and an American standard for forged carbon steel and alloy steel pipe fittings for medium and high temperatures. The A234 standard includes carbon steel and alloy steel grades such as WPB, WP5, WP9, WP11, WP12, WP22, and WP91.
Send Inquiry
Chat Now
Product Introduction
ASTM A234 is a standard specification published by the American Society for Testing and Materials (ASTM) describing the manufacturing requirements for carbon and alloy steel pipe fittings. In China, the corresponding national standard is GB/T12459.
Specifications : ANSI/ASME B16.9, B16.28, MSS-SP-43.
Standard : ASTM A234 / ASME SA234
Size : ½"NB to 48″NB in Sch 10s, 40s, 80s, 160s, XXS.
Schedules :Sch.40 to Sch.XXs
Type : Seamless / Welded
Chemical Composition of ASTM A234 Alloy Steel Pipe Fittings(%)
| Grade | C | Mn | P | S | Si | Cr | Mo | Others |
| WP1 | 0.28 | 0.30-0.90 | 0.045 | 0.045 | 0.10-0.50 | - | 0.44-0.65 | - |
| WP12 CL1, WP12 CL2 | 0.05-0.20 | 0.30-0.80 | 0.045 | 0.045 | 0.60 | 0.80-1.25 | 0.44-0.65 | - |
| WP11 CL1 | 0.05-0.15 | 0.30-0.60 | 0.030 | 0.030 | 0.50-1.00 | 1.00-1.50 | 0.44-0.65 | - |
| WP11 CL2, WP11 CL3 | 0.05-0.20 | 0.30-0.80 | 0.040 | 0.040 | 0.50-1.00 | 1.00-1.50 | 0.44-0.65 | - |
| WP22 CL1, WP22 CL3 | 0.05-0.15 | 0.30-0.60 | 0.040 | 0.040 | 0.50 | 1.90-2.60 | 0.87-1.13 | - |
| WP24 | 0.05-0.10 | 0.30-0.70 | 0.020 | 0.010 | 0.15-0.45 | 2.20-2.60 | 0.90-1.10 | *A |
| WP5 CL1, WP5 CL3 | 0.15 | 0.30-0.60 | 0.040 | 0.030 | 0.50 | 4.0-6.0 | 0.44-0.65 | - |
| WP9 CL1, WP9 CL3 | 0.15 | 0.30-0.60 | 0.030 | 0.030 | 1.00 | 8.0-10.0 | 0.90-1.10 | - |
| WPR | 0.20 | 0.40-1.06 | 0.045 | 0.050 | - | - | - | *B |
| WP91 | 0.08-0.12 | 0.30-0.60 | 0.020 | 0.010 | 0.20-0.50 | 0.85-1.05 | 0.85-1.05 | *C |
| WP911 | 0.09-0.13 | 0.30-0.60 | 0.020 | 0.010 | 0.10-0.50 | 0.90-1.10 | 0.90-1.10 | *D |
| WP92 | 0.07-0.13 | 0.30-0.60 | 0.020 | 0.010 | 0.50 | 0.30-0.60 | 0.30-0.60 | *E |
Mechanical Properties of ASTM A234 Alloy Steel Pipe Fittings
| Grade | Tensile Strength, min. ksi[MPa] | Yield Strength, min. ksi[MPa] | Elongation, min. % | |
| Longitudinal | Transverse | |||
| WP1 | 55-80[380-550] | 30[205] | 20 | 13 |
| WP12 CL1 | 60[415] | 32[220] | 22 | 14 |
| WP12 CL2 | 70[485] | 40[275] | 22 | 14 |
| WP11 CL1 | 60[415] | 30[205] | 22 | 14 |
| WP11 CL2 | 70[485] | 40[275] | 22 | 14 |
| WP11 CL3 | 75[520] | 45[310] | 22 | 14 |
| WP22 CL1 | 60[415] | 30[205] | 22 | 14 |
| WP22 CL3 | 75[520] | 45[310] | 22 | 14 |
| WP24 | 85[585] | 60[415] | 20 | - |
| WP5 CL1 | 60[415] | 30[205] | 22 | 14 |
| WP5 CL3 | 75[520] | 45[310] | 22 | 14 |
| WP9 CL1 | 60[415] | 30[205] | 22 | 14 |
| WP9 CL3 | 75[520] | 45[310] | 22 | 14 |
| WPR | 63-99[435-605] | 46[315] | 20 | - |
| WP91 | 90[620] | 60[415] | 20 | 13 |
| WP911 | 90-120[620-840] | 64[440] | 20 | 13 |
| WP92 | 90-120[620-840] | 64[440] | 20 | 13 |

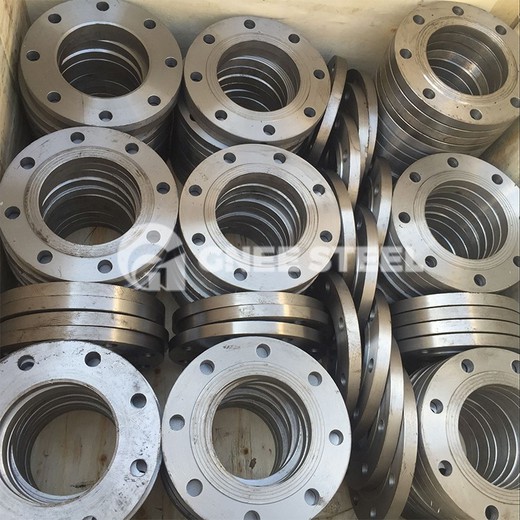

A234 Pipe Fitting
