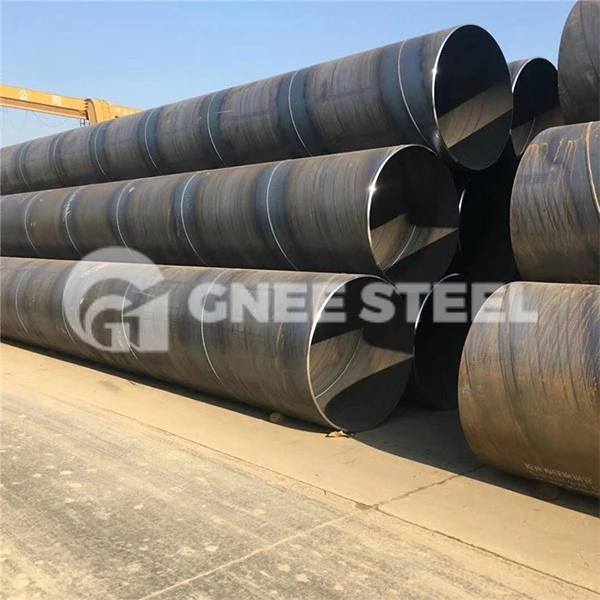

L450 Welded Round Steel Pipe
L450 welded spiral steel pipe Description
L450 spiral welded pipe is made of L450 low alloy high-strength steel as raw material through spiral forming process and welding technology, which belongs to pipeline steel in API 5L standard (corresponding to X65/X70 grade in international standard). It belongs to pipeline steel in API 5L standard (corresponding to X65/X70 grade in international standard), its minimum yield strength is 450MPa, and it is widely used in the field of high-pressure fluid transmission and structural support.
Execution standard: Comply with API 5L PSL2 (oil and gas industry pipeline standard), GB/T 9711 (China oil and gas steel pipe standard) and SY/T 5037 (low-pressure fluid transmission). SY/T 5037 (low pressure fluid transmission standard).
Model identification: partly labelled as L450M, where 'M' indicates that the material has excellent low-temperature toughness (e.g. remains tough below -20°C). (such as -20 ℃ below still maintain impact resistance).
Manufacturing processes
Spiral forming and welding:
Using high frequency welding (HFW) or submerged arc welding (SAWH) process, the steel strip is cold-formed into a spiral and then welded into shape, with continuous and uniform weld seams and better compression resistance than LSAW pipes.
The production process includes Uncoiling → Levelling → Curling → Welding → Welding → Welding Seam Treatment → Inspection, which can manufacture large-calibre steel pipes with diameters of Φ219-3500mm and wall thicknesses of 6-25.4mm.
Chemical composition: low carbon design (carbon content ≤ 0.22%), sulfur, phosphorus content ≤ 0.03%, adding manganese (Mn), silicon (Si) and trace niobium (Nb), vanadium (V) Alloying elements such as manganese (Mn), silicon (Si) and traces of niobium (Nb), vanadium (V) are added to optimise the grain structure and enhance strength.
Mechanical properties:
Yield strength ≥450MPa, tensile strength 520-760MPa, elongation ≥20%.
Excellent low-temperature impact toughness, suitable for cold regions or deep-sea environments
Comparative advantages
Comparison with lower steel grades: compared with L245 and L360 steel pipes, L450 has higher yield strength (≥450MPa) and can withstand higher pressure or complex loads.
Comparison with LSAW pipes: Spiral forming process can produce large diameter pipes (e.g. Φ3500mm) at low cost with uniform weld seam distribution and better pressure resistance
L450 low alloy high tensile structural steel pipe Specification
|
products name
|
L450 spiral pipe
|
|
|
Size
|
Outer Diameter
|
219-3000mm
|
|
Wall Thickness
|
SCH10 SCH20 SCH30 STD SCH40 SCH60 XS SCH80
SCH100 SCH120 SCH140 SCH160 XXS |
|
|
Length
|
Single random length/Double random length
5m-14m,5.8m,6m,10m-12m,12m or as customer's actual request |
|
|
Ends
|
Plain end/Beveled,protected by plastic caps on both ends, cut quare,grooved,threaded and coupling,etc.
|
|
|
Surface Treatment
|
Bare,Painting black,varnished,galvanized,anti-corrosion 3PE PP/EP/FBE coating
|
|
|
Technical Methods
|
Hot-rolled/Cold-rolled/Hot-expanded
|
|
|
Testing Methods
|
Pressure test,Flaw detection,Eddy current testing, Hydro static testing or Ultrasonic examination and also with chemical and
physical property inspection |
|
|
Packaging
|
Small pipes in bundles with strong steel strips,large pieces in loose; Covered with plastic woven
bags; Wooden cases;Suitable for lifting operation;Loaded in 20ft 40ft or 45ft container or in bulk; Also according to customer's requests |
|
|
Payment Terms
|
FOB 30%T/T,70% before shipment CIF 30% pre-payment and the balance to be paid before making shipment or Irrevocable 100% L/C at sight
|
|
|
MOQ
|
25 tons
|
|
|
Application
|
1. Fence, greenhouse, door pipe,greenhouse
2. Low pressure liquid, water, gas, oil, line pipe 3. For both indoor and outdoor the building construction 4. Widely used in scaffolding construction which is much cheaper and convenient |
|
L450 Welded Round Steel Pipe
