BS EN 10219 Cold Formed Welded Structural Hollow Sections
EN 10219 specifies the technical delivery conditions for round, square or rectangular cold-formed welded structural hollow sections of cold-formed structural hollow sections without subsequent heat treatment, made of S235JR, which are characterized by good plasticity and weldability. The material has good formability and weldability.
EN 10219 Structural Pipe Specification
| Outer Diameter | 219mm-1820mm |
| Standards | ASTM A 53,API 5L,GB/T9711,GB/T3091,BS:1387,EN10217 |
| Wall Thickness | 5.0mm-50mm |
| LSAW Steel Pipe Length | 4mtr-10mtr |
| Steel Grade | Q235B, Q345B, Q195, Q215, S235JR |
| Surface | Lightly oiled, Hot dip galvanized, Electro galvanized, Black, Bare, Varnish coating/Anti rust oil, Protective Coatings etc. |
BS EN10219-1 Welded Pipe Size Table
| Characteristics | Tolerances | |||
|---|---|---|---|---|
| Outside dimensions of side | (H,B 100mm) |
 1% with a min of 0.5mm |
||
| H : Longest side B : Shortest side |
(100mm H,B200mm) |
0.8% |
||
| (200mmH,B) |
0.6% |
|||
| Wall thickness(T) | (T5mm) |
10% |
||
| (5mmT) |
0.50mm |
|||
| Concavity / Convexity | MAX 0.8% with a min of 0.5mm | |||
| Squareness of sides | 90 1 |
|||
| External corner radius | (T6mm) |
1.6TR2.4T |
||
| (6mmT10mm) |
2.0TR3.0T |
|||
| (10mmT) |
2.4TR3.6T |
|||
| Twist | 2mm + 0.5mm/m in length | |||
| Straightness | 0.15% in total length | |||
| Mass | 6% in individual lengths |
|||
| Length | Approximate | 0, +50mm | ||
| Exact | L6,000mm |
0, +5mm | ||
| 6,000mmL10,000mm |
0, +15mm | |||
| 10,000mmL |
0, +5mm+1mm/m | |||
EN 10219-1 Steel Welded Pipe Chemical Analysis:
|
Steel grade |
Type of de-oxidation a |
% by mass, maximum | ||||||
|
Steel name |
Steel number |
C |
C |
Si |
Mn |
P |
S |
Nb |
|
S235JRH |
1.0039 |
FF |
0,17 |
- |
1,40 |
0,040 |
0,040 |
0.009 |
|
S275J0H |
1.0149 |
FF |
0,20 |
- |
1,50 |
0,035 |
0,035 |
0,009 |
|
S275J2H |
1.0138 |
FF |
0,20 |
- |
1,50 |
0,030 |
0,030 |
- |
|
S355J0H |
1.0547 |
FF |
0,22 |
0,55 |
1,60 |
0,035 |
0,035 |
0,009 |
|
S355J2H |
1.0576 |
FF |
0,22 |
0,55 |
1,60 |
0,030 |
0,030 |
- |
|
S355K2H |
1.0512 |
FF |
0,22 |
0,55 |
1,60 |
0,030 |
0,030 |
- |
|
a. The deoxidation method is designated as follows: FF: Fully killed steel containing nitrogen binding elements in amounts sufficient to bind available nitrogen (e.g. min. 0,020 % total Al or 0,015 % soluble Al). b. The maximum value for nitrogen does not apply if the chemical composition shows a minimum total Al content of 0,020 % with a minimum Al/N ratio of 2:1, or if sufficient other N-binding elements are present. The N-binding elements shall be recorded in the Inspection Document. |
||||||||

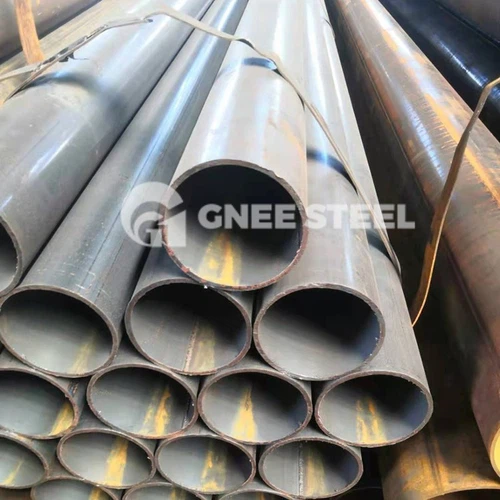

GNEE EN 10219-1 Longitudinally Welded Pipe
