What is DIN3352, API 6D, ASME B16.34, API600, GOST5762-2002 cast steel gate valve
DIN3352, API 6D, ASME B16.34, API600, GOST5762-2002 cast steel gate valve is a shut-off valve manufactured by casting steel into valve components, featuring a vertically moving gate as its closure member. It supports only full-open or full-closed operations and is used for medium flow control in industrial pipelines for oil, chemical, and power applications.
By sealing principle, it is classified into:
Self-sealing (for high-pressure conditions)
Force-sealing (for low-pressure conditions)
Technical Specifications:
Nominal diameter: DN15–DN800
Pressure rating: 1.6MPa–32.0MPa
Temperature range: -29°C to 570°C
Design Features:
Straight-through flow path with low fluid resistance and bidirectional flow capability
Sealing surfaces typically made of stainless steel or hard alloy
Actuation methods: manual, electric, or gear-driven
Compliance Standards:
DIN 3352, API 6D, ASME B16.34, API 600, GOST 5762-2002
Applications:
Energy & chemical, municipal & environmental protection, metallurgy, and machinery industries.
Specification
Design and Manufacture: DIN3352, API 6D, ASME B16.34, API600, GOST5762-2002
Size Range: DN40-1400,1/2＂～60＂
Pressure Ratings: PN1.0-PN42.0Mpa,150LB-2500LB,
End Connections: EN1092,ASME B16.5, ASME B16.47, MSS-SP44, GOST12815-80
Face to Face Dimension: DIN3202, ASME B16.10, API 6D,GOST3706-93
Inspection and Testing: DIN 3230,API 598,GOST356-80

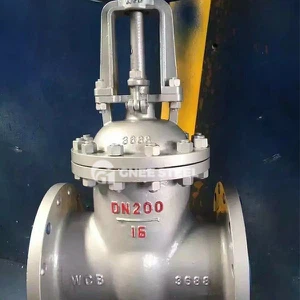

GNEE DIN3352, API 6D, ASME B16.34, API600, GOST5762-2002 cast steel gate valve for sale
