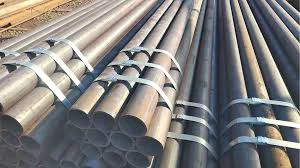

GB/T 8163-2008 Seamless Carbon Steel Pipe
GB/T 8163-2008 is the Chinese national standard for seamless carbon steel pipes used in fluid transportation under pressure. This is the pressure-rated counterpart to GB/T 8162.
Key Features
| Feature | Description |
|---|---|
| Standard | Chinese National Standard (GuoBiao/Tui) |
| Application | Fluid transport under pressure |
| Material | Carbon steel (10, 20, 16Mn most common) |
| Key Requirement | Mandatory pressure testing |
Common Steel Grades
| Grade | Similar to | Key Characteristics |
|---|---|---|
| 10 | 1010 | Low strength, good weldability |
| 20 | 1020 | Most widely used, balanced properties |
| 16Mn | ASTM A572 Gr.50 | Higher strength, low alloy |
| Q295 | - | Low alloy, improved properties |
| Q345 | ASTM A572 Gr.50 | Higher strength low alloy |
Chemical Composition (Grade 20)
| Element | Composition (%) |
|---|---|
| Carbon (C) | 0.17-0.23 |
| Silicon (Si) | 0.17-0.37 |
| Manganese (Mn) | 0.35-0.65 |
| Phosphorus (P), max | 0.035 |
| Sulfur (S), max | 0.035 |
| Note: | Cu ≤ 0.25%, Cr ≤ 0.25%, Ni ≤ 0.25% |
Mechanical Properties
| Grade | Yield Strength (MPa) | Tensile Strength (MPa) | Elongation (%) |
|---|---|---|---|
| 10 | ≥ 335 | 335-475 | ≥ 24 |
| 20 | ≥ 245 | 410-550 | ≥ 20 |
| 16Mn | ≥ 345 | 490-665 | ≥ 21 |
| Q295 | ≥ 295 | 430-610 | ≥ 22 |
| Q345 | ≥ 345 | 470-630 | ≥ 21 |
Manufacturing Process
Production Methods:
Hot-rolled seamless (most common)
Cold-drawn seamless (better surface, tighter tolerance)
Heat Treatment:
Hot-rolled: Usually as-rolled
Cold-drawn: Must be heat treated (normalized or annealed)
Optional: Normalizing for property optimization
Testing Requirements (Critical)
Mandatory Tests:
| Test | Requirement | Purpose |
|---|---|---|
| Hydrostatic Test | 100% of pipes | Pressure integrity verification |
| Tensile Test | Per batch | Mechanical property verification |
| Flattening Test | OD ≤ 400mm | Ductility check |
| Flaring Test | OD ≤ 150mm | Formability check |
Hydrostatic Test Pressure:
text
P = 2SR/D Where: P = test pressure (MPa) S = stress (60% of yield strength) R = wall thickness (mm) D = outside diameter (mm)
Minimum pressure: 5MPa for ≥10 seconds
⚠️ Critical: Pressure Service Qualification
GB/T 8163 is designed and tested for pressure service, unlike GB/T 8162. This is the legal distinction between the two standards.
Applications
Pressure Systems:
Steam pipes (low to medium pressure)
Water supply and drainage
Hydraulic oil lines
Compressed air systems
Heat exchangers (shell and tube)
Industrial Piping:
Plant utility lines
Cooling water circuits
Lubrication oil systems
Process piping (non-corrosive fluids)
Energy Sector:
Boiler feedwater lines
Condensate return lines
Fuel oil piping
Instrument air lines
Pressure Ratings
Maximum Allowable Pressure:
Based on Chinese standard GB 50316 or ASME B31.1/B31.3 calculations:
text
P = 2S×t×E / (D - 2t×Y) Where typical safety factor = 4
Temperature Limitations:
Maximum: ~350°C (for Grade 20)
Minimum: ~-20°C (no impact testing in basic spec)
For low temperatures: Special requirements needed
Size Range
| Parameter | Range |
|---|---|
| Outside Diameter | 6-630 mm |
| Wall Thickness | 0.25-75 mm |
| Common Sizes | DN15-DN600 (½"-24") |
Comparison: 8162 vs 8163
| Aspect | GB/T 8162 | GB/T 8163 |
|---|---|---|
| Purpose | Structural | Pressure fluid transport |
| Hydro Test | Optional | Mandatory (100%) |
| Weldability | Considered | Stricter requirements |
| Traceability | Basic | Enhanced |
| Cost | Lower | 10-20% higher |
| Safety | Not for pressure | Designed for pressure |
Ordering Information
Standard Designation:
text
GB/T 8163-2008 - Grade - Dimensions - Additional Codes Example: GB/T 8163-2008 20 219×8
Common Supplementary Codes:
L = Longitudinally tested (ultrasonic)
R = Radiographic tested
H = Hydrostatically tested to higher pressure
D = Delivered in heat treated condition
Quality Certification
Required Documents:
Mill Test Certificate (chemical & mechanical)
Hydrostatic test records
Heat treatment records (if applicable)
Traceability to heat number
Inspection Levels:
Factory inspection (basic)
Third-party inspection (common for export)
Government supervision (for critical applications)
International Recognition
Export Considerations:
Widely exported from China
Often accepted in developing countries
May require additional testing for Western markets
Equivalency studies needed for code compliance
Similar Standards:
| Region | Similar Standard |
|---|---|
| USA | ASTM A106 Gr.B (partial) |
| Europe | EN 10216-2 P235TR2 |
| Japan | JIS G3454 STPG370 |
| International | ISO 3183 L245 |
Common Grades Usage
Grade 20 (Most Common):
~70% of all GB/T 8163 production
Balanced properties: strength, weldability, cost
Temperature range: -20°C to 350°C
Pressure limit: ~10 MPa (1450 psi) typical
16Mn/Q345:
Higher strength applications
Thinner walls possible
Better low-temp properties
More expensive but weight-saving
Limitations
Service Restrictions:
NOT for boilers (use GB 5310 instead)
NOT for high-temperature (>400°C) service
NOT for sour service without verification
NOT for cryogenic service without impact testing
NOT for toxic/hazardous fluids without review
Design Considerations:
Corrosion allowance must be added
Welding procedures must be qualified
Support spacing per piping codes
Expansion/contraction accommodated
Market Position
In China:
Standard choice for industrial piping
Mandatory for pressure systems per Chinese codes
Quality varies between manufacturers
Price competitive vs imported pipe
International:
Cost advantage over Western standards
Growing acceptance with proper documentation
Often used in Belt & Road projects
Requires careful supplier qualification
Safety Incidents & Lessons
Common Issues:
Misapplication as structural pipe (using wrong standard)
Substandard quality from uncertified mills
Inadequate testing or documentation
Welding problems from improper procedures
Best Practices:
Always verify material certification
Constitute random testing for large orders
Use qualified welders and procedures
Follow applicable design codes
Technical Updates
Note: GB/T 8163-2008 has been superseded by GB/T 8163-2018 with these key changes:
Added steel grades (Q390, Q420, Q460)
Enhanced testing requirements
Improved traceability
Updated technical references
Ordering Checklist
Essential Specifications:
✅ Standard: GB/T 8163-2008 (or 2018)
✅ Grade: 10, 20, 16Mn, Q295, Q345
✅ Dimensions: OD × Wall × Length
✅ Manufacturing: Hot-rolled or cold-drawn
✅ Heat treatment: As-rolled or normalized
✅ Testing: Hydrostatic pressure required
✅ Certification: Mill test certificate
✅ Marking: Standard, grade, heat number
In summary: GB/T 8163-2008 is the Chinese pressure pipe standard for seamless carbon steel pipes used in fluid transport systems. While similar in name to GB/T 8162, the mandatory pressure testing and enhanced requirements make it suitable for pressurized applications. Proper understanding and application of this standard is critical for safety in pressure piping systems.
