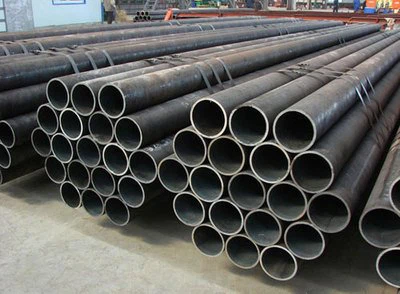

ASTM A519 1010 Steel Pipe: Low-Carbon Mechanical Tubing Overview

What ASTM A519 1010 Tubing Is

ASTM A519 is the standard specification for seamless carbon and alloy steel mechanical tubing, covering product that is hot finished or cold drawn and used for mechanical purposes rather than for pressure containment or structural framing. Grade 1010 is one of the carbon steel grades listed in the specification, and it is based on a low-carbon, low-manganese composition that is deliberately easy to form and weld.

The distinction that matters most in practice is that A519 is a mechanical tubing specification. Dimensional accuracy, surface condition and machinability are the priorities, and the mechanical property requirements are tied to the condition in which the tube is ordered rather than to the grade number alone.

Composition of the 1010 Grade

Element Typical requirement for 1010
Carbon 0.08-0.13%
Manganese 0.30-0.60%
Phosphorus, max 0.040%
Sulphur, max 0.050%
Product form Seamless, hot finished or cold drawn
Delivery conditions As rolled, cold drawn, annealed, normalised or stress relieved
Mechanical requirements Tabulated in the specification by grade, condition and size
Testing Tension test, plus hydrostatic or non-destructive electric testing of the tube body

Because the carbon and manganese contents are both low, the grade responds well to cold working, bending and machining, and it is readily welded without preheat in normal thicknesses. The same chemistry also means that strength is limited: the grade is not intended for high pressure or highly stressed duty, and where more strength is needed a higher carbon grade such as 1020 or an alloy grade from the same specification is selected instead.

Strength Depends on the Ordered Condition

The specification's mechanical property tables assign minimum tensile and yield strength values according to the grade, the condition and the size of the tube, so the same 1010 chemistry can be supplied in several quite different strength levels. Cold-drawn tubing is work hardened in the drawing operation and therefore arrives with the highest strength and the best dimensional accuracy; annealing after drawing restores ductility and lowers strength; normalising produces a uniform ferrite and pearlite structure with moderate strength and good toughness; stress relieving reduces residual stress while retaining most of the cold-drawn strength.

The practical consequence is that a purchase order which states only the grade is incomplete. The required condition, the outside diameter, the wall thickness, the length and the applicable tolerance class must all be stated so that the supplier can confirm the mechanical requirement that applies.

Applications of 1010 Mechanical Tubing

Machined mechanical parts such as shafts, spacers, bushings, rollers and connecting elements.

Hydraulic and pneumatic cylinder barrels and rods where a smooth bore and accurate dimensions are required.

Automotive and off-highway components in non-load-bearing positions, including structural sleeves and brackets.

General engineering pipework for conveying low-pressure fluids and gases where pressure containment is not the design driver.

Fabricated frames, guards, handles and supports where the tube is cut, bent and welded rather than machined.

Fabrication and Handling Guidance

Machining is straightforward because of the low carbon content; free-machining grades are used when high cutting speeds with heavy chip loads are required.

Cold bending suits small to moderate radii; tight radii are formed with a mandrel to prevent flattening and to limit wall thinning on the outside of the bend.

Welding is performed without preheat at normal wall thicknesses, using a low-carbon filler and normal quality control on the weld preparation.

Where the bore is critical, the tube should be machined or honed after any forming or welding operation that could distort it.

Parts that will be stored for long periods should be protected with oil or another temporary coating, because low-carbon tubing rusts readily in damp conditions.

Ordering and Inspection Points

State the specification and grade, the delivery condition, the outside diameter, wall thickness and length, and the tolerance class required.

Confirm whether the tube is to be hydrostatically tested or checked by a non-destructive electric test, and record which method was applied.

Check the chemical analysis and tension test results on the mill certificate against the requirement for the ordered condition.

Verify the surface condition: as-rolled tubing carries mill scale, while cold-drawn tubing is normally supplied clean and may be oiled for protection.

Add a coating or plating requirement to the order where corrosion protection is needed, since the standard delivery condition is unprotected.

FAQ

Q: What is ASTM A519 1010 tubing made of?
It is a low-carbon seamless mechanical tube with carbon in the range of about 0.08% to 0.13% and manganese between 0.30% and 0.60%, which gives good ductility, machinability and weldability.

Q: What is the difference between A519 and A106 pipe?
A106 covers seamless carbon steel pipe for high-temperature and pressure service with tighter control of sulphur and phosphorus, while A519 covers mechanical tubing where machinability and dimensional accuracy are the priority.

Q: How does 1010 compare with 1020?
Grade 1020 contains more carbon and consequently develops higher strength but lower ductility, so it is chosen when the part needs more load capacity than 1010 can provide.

Q: What sizes and tolerances are available?
Cold-drawn mechanical tubing is produced in a range of outside diameters and walls with tight tolerances, while hot-finished tubing is available in larger sizes with wider tolerances; the applicable values are those tabulated in the specification for the size and condition ordered.

Q: Is 1010 tubing suitable for pressure service?
It is not intended for high pressure or highly stressed duty because its strength is limited, and pressure applications are normally met by a pipe specification written for that service.

Q: How is the tube protected against corrosion?
The standard delivery is unprotected, either as-rolled or clean cold drawn and lightly oiled, so galvanizing, painting or another coating must be specified separately when protection is required.
