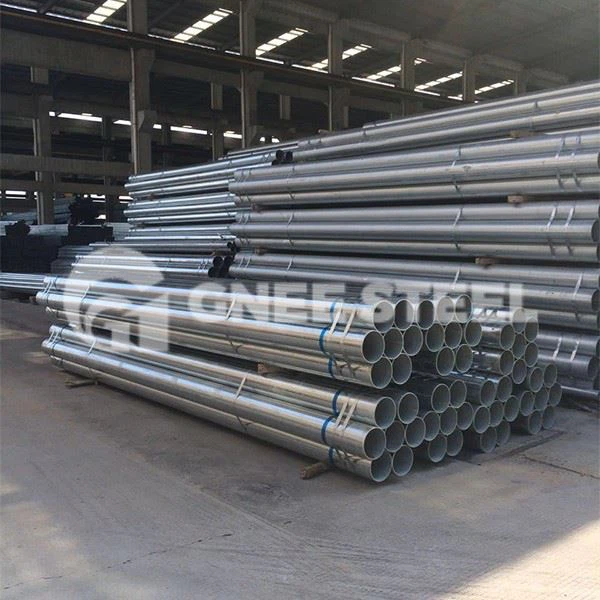

S235JR Galvanized Pipe

S235JR galvanized pipe is a non-alloy structural steel pipe of European standard. In order to improve the corrosion resistance of the steel pipe, S235JR steel pipe is galvanized. S235JR galvanized steel pipe is divided into hot-dip galvanizing and electro-galvanizing. Hot-dip galvanizing has a thick galvanized layer, while electro-galvanizing has a low cost and the surface is not very smooth.

S235JR Hot Dip Galvanized Steel Pipe Specification

Standard:	API, ASTM, BS, DIN, GB, JIS
Certification:	ISO, SGS
Thickness:	0.5 – 16 mm
Outer Diameter:	13 – 286 mm
OD:	1/2″-10″
Secondary Or Not:	Non-secondary
Material:	S235JR, Q235
Packaging Details:	in bundle,plastic
Delivery Time:	20-30days

S235JR Pipes Chemical Properties

Steel Grade		Type of deoxidation	% by mass, maximum
steel name	steel number		C	SI	Mn	P	S	Nb
S235JR	1.0039	FF	0.17		1.4	0.04	0.04	0.009

S235JR Galvanized Steel Pipe Material Mechanical Properties

Steel Grade		Minimum Yield Strength MPa		Tensile Strength MPa		Elongation	Impact Energy
Steel name	Steel number	thickness(mm)		thickness(mm)		% (min)	(KV J) (min)
		≤ 16	16> to ≤40	≤3	> 3 ≤40	≤40 mm	test temperature
S235JR	1.0039	235	225	360-510	360-510	24	20℃

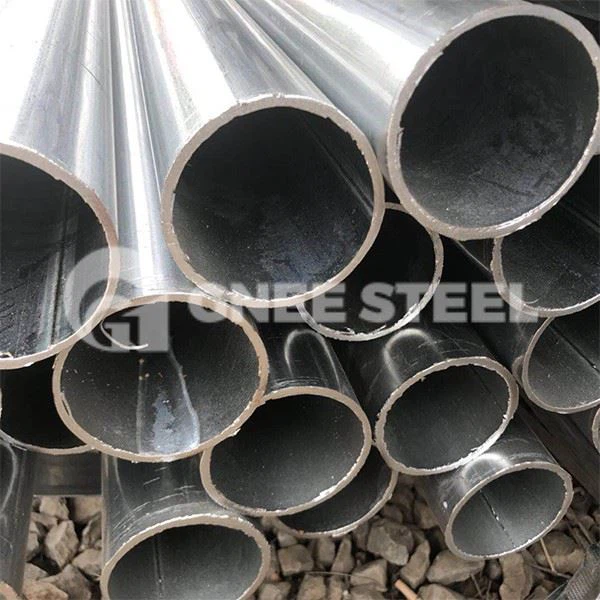

S235JR Galvanized Carbon Steel Pipe











































FAQ

Q: Do you have stock? Can you handle small orders?
A: Yes, we can. Small orders are also acceptable.
Q: Do you provide samples? Is it free or additional?
A: Yes, we can provide samples for free. But the courier fee should be borne by the buyer.
Q: If the product quality is found to be unqualified. How do you solve it?
A: The buyer needs to submit to us the certification documents, pictures and videos of the said unqualified goods first. If necessary, we can also send engineers to your site for direct inspection.
Q: Do you accept OEM service and manufacture products according to the drawings provided by the buyer?
A: Yes, we can provide OEM service. Manufacture products according to the drawings provided by the buyer.
