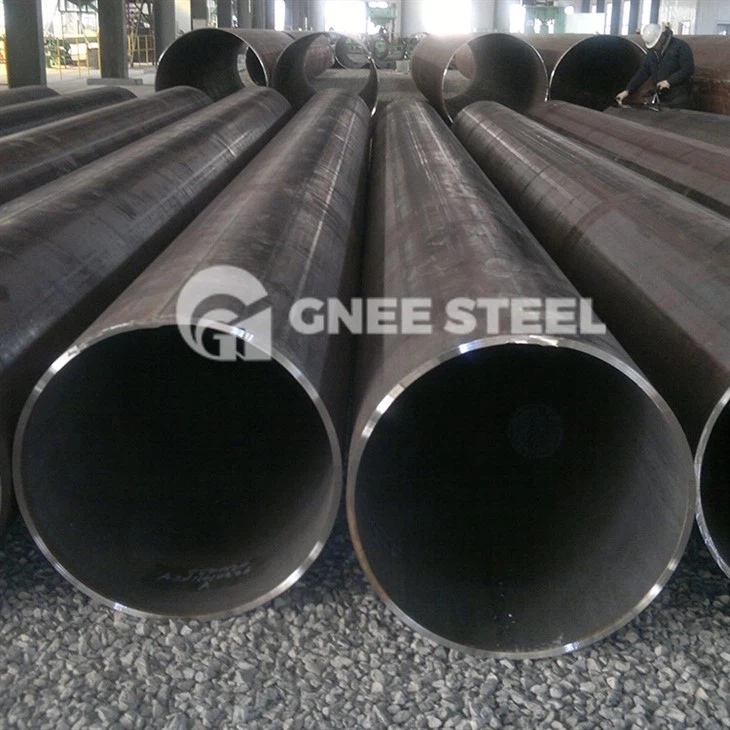

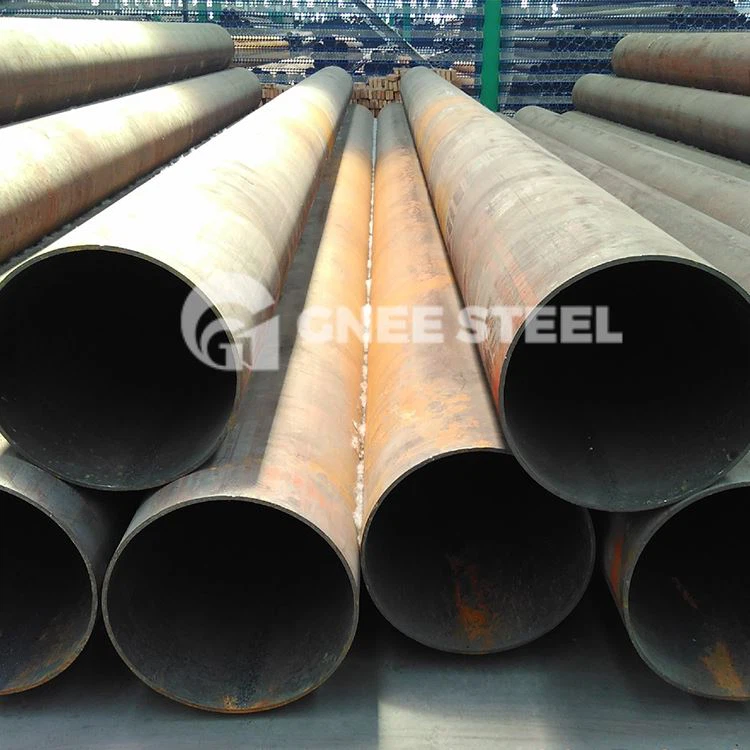

GB/T 13793 LSAW Pipe
GB/T 13793 LSAW Pipe

GB/T 13793 LSAW Pipe

This standard applies to the general purpose of the outer diameter of not more than 630 mm straight seam high-frequency resistance welded steel pipe.

Send Inquiry

Chat Now

Inspection-Report-Of-LSAW-Pipe-converted.pdf

Product Introduction

This standard specifies the classification and code, size, shape, weight, technical requirements, test methods, inspection rules, packaging, marking and quality certification of straight seam resistance welded steel pipe.

Specification:	Steel Pipes with a Longitudinal Electric Resistance Weld
Application:	For Coveying Liquid Service
Grade:	Q195 Q215 Q235 Q295 Q345
Manufacture:	Longitudinal Electric Resistance Weld
Section of Shape:	Round
Outside Diameter:	15mm to 630mm according to GB/T 21835
Wall Thickness:	According to GB/T 21835 or Specified
Length of Pipe:	Fixed 5.8/6 Meters or SRL/DRL or Specified
Permissible Variations:	According to GB/T 21835 Standard
End of Finish:	Plain & Beveled End &THD with Coupling
Heat treatment:	Heat Treated
Surface:	Bare or Coated Protective Paint or Anticorrosive Coating
MTC:	Mill Test Certificate according to GB/T 2102 or EN 10204 3.1B
Marking & Packing:	According to GB/T 2102 or Specified
MOQ:	5 Tons
Transportation:	FCL&LCL by sea
Delivery:	10-15 days after signed contract
Payment:	L/C or T/T or D/P or O/A

GB/T 13793 LSAW Steel Pipe Size Table

Nominal O.D. (mm)	Min. Yield Strength(Mpa) Wall Thickness								Length (m)
Nominal O.D. (mm)	175	245	290	360	415	450	485	555	Length (m)
406	10-18	10-18	10-18	10-18	10-16	10-16	10-16	10-14	6.0-12.0
457	10-20	10-20	10-20	10-20	10-18	10-18	10-18	10-16	6.0-12.0
508	10-26	10-26	10-26	10-24	10-24	10-24	10-22	10-20	6.0-12.0
559	10-28	10-28	10-28	10-26	10-26	10-26	10-22	10-22	6.0-12.0
610	10-30	10-30	10-30	10-30	10-28	10-28	10-26	10-24	6.0-12.0
660	10-30	10-30	10-30	10-30	10-30	10-28	10-28	10-24	6.0-12.0
711	10-30	10-30	10-30	10-30	10-30	10-28	10-28	10-24	6.0-12.0
762	10-30	10-30	10-30	10-30	10-30	10-28	10-28	10-24	6.0-12.0
813	10-30	10-30	10-30	10-30	10-30	10-28	10-28	10-24	6.0-12.0
864	10-30	10-30	10-30	10-30	10-30	10-28	10-28	10-24	6.0-12.0
914	10-35	10-35	10-35	10-35	10-35	10-32	10-32	10-26	6.0-12.0
965	10-35	10-35	10-35	10-35	10-35	10-32	10-32	10-26	6.0-12.0
1016	10-40	10-40	10-40	10-38	10-38	10-38	10-32	10-26	6.0-12.0
1067	10-45	10-45	10-45	10-42	10-42	10-38	10-32	10-26	6.0-12.0
1118	10-45	10-45	10-45	10-42	10-42	10-38	10-32	10-28	6.0-12.0
1168	10-45	10-45	10-45	10-42	10-42	10-38	10-32	10-28	6.0-12.0
1219	10-45	10-45	10-45	10-42	10-42	10-38	10-32	10-28	6.0-12.0
1321	10-50	10-50	10-50	10-48	10-46	10-38	10-32	10-30	6.0-12.0
1422	10-50	10-50	10-50	10-50	10-46	10-38	10-32	10-30	6.0-12.0
1460	10-50	10-50	10-50	10-50	10-46	10-38	10-32	10-30	6.0-12.0
