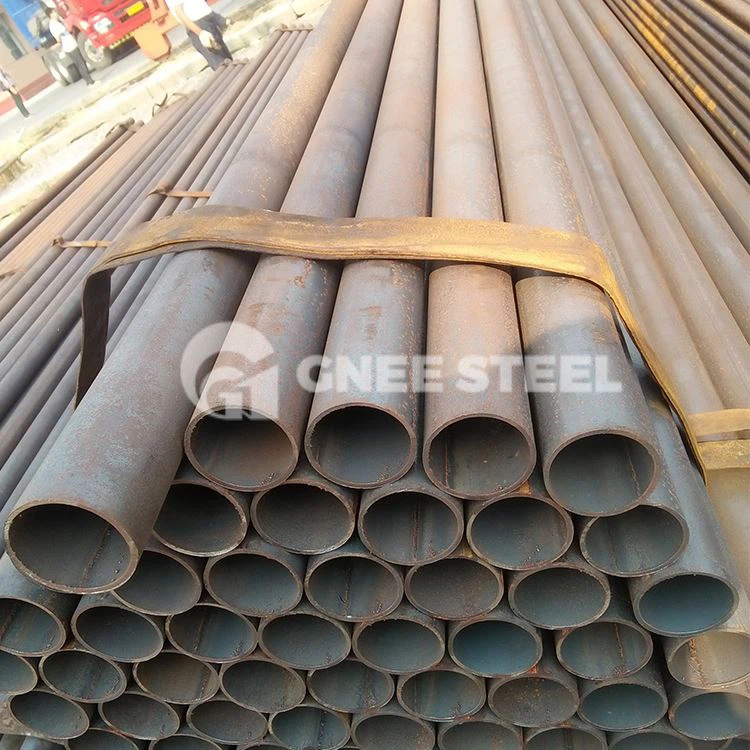

EN10217-1 P195 TR2 Welded Steel Pipe For Pressure Purpose

EN10217-1 P195 TR2 ERW Steel Tubing Specification

size in Mm	5 To 1219.2
Schedule	Schedule XS, Schedule 160, Schedule 40, Schedule XXS, Schedule 80 Supplier and Manufacturer
Standard	EN, DIN, GB, JIS, AISI, ASME, ASTM
Welded Pipe Size in MM	5 to 1219.2
Length	Double Random, Single Random, Standard & Cut length
Finish	BA, Polished, AP, MF
Form	Square, Hydraulic, Rectangular, Clad, U bent, Boiler, Hollow, LSAW, Straight, Round,
Wall Thickness in inch	0.020 to 0.220
End	Beveled, Plain, Treaded
Pipe Marking	All Pipes are marked as follows: Supplier or Manufacturer's Name, Standard, Grade, OD, Thickness, Length, Heat Number

EN 10217-1 P195 TR2 Welding Round PipeWelding Round Pipe Chemical composition

Steel grade		C max.	Si max.	Mn max.	P max.	S max.	Cr Max.	Mo max.	Ni max.	Al min.	Cu max.	Nb max.	Ti max.	V max.	Cr+Cu+Mo+Ni max.
Steel name	Steel number
P195TR2	1.0108	0,13	0,35	0,70	0,025	0,020	0,30	0,08	0,30	0,02	0,30	0,010	0,04	0,02	0,70

EN10217-1 P195 TR2 Welded Steel Tubes Mechanical Properties

Steel grades		Tensile properties					Impact properties
Steel name	Steel number	Upper yield strength ReH min for T mm   T d 16 16 < T d 40 MPa		Tensile Strength Rm MPa	Elongation A min. % b c		Minimum average absorbed energy KV J at a temperature of °C
							l		t 0
					l	t	0	-10
P195TR2	1.0108	195	185	320-440	27	25	40	28	27

EN10217-1 P195 TR2 Electric Resistance Welded Pipe Manufacture and Delivery Conditions

Route N°	Manufacturing Process		Manufacturing routes		Delivery Condition a	Applicable for quality
	Process	Symbol	Starting material	Forming operation
						TR1	TR2
1a	Electric welded b	EW	As (hot) rolled strip	Cold formed (+ welded)	As welded	X	-
1b					NW	x	-
1c					NP	x	x
2a			Normalising rolled strip		As welded	x	-
2b					NW	x	x
2c					NP	x	x
3			As (hot) rolled or normalising rolled strip	Cold formed (+ welded) + hot stretch reduced at a controlled temperature to give a normalised condition	NR	x	x
4			Cold rolled + stress relieved	Cold formed (+ welded)	NP	x	x
11a	Submerged arc- welded   – Longitudinal seam or – helical seam	SAW: -SAWL     -SAWH	As (hot) rolled plate or strip	Cold formed (+ welded)	As welded	x	-
11b					NW	x	-
11c					NP	x	x
12a			Normalising rolled plate or strip	Cold formed (+ welded)	As welded	x	x
12b					NW	x	x
12c					NP	x	x
13a			As in lines 11 or 12	Normalising-formed (+ welded)	As welded	x	x
13b					NW	x	x
13c					NP	x	x
21	Continuous welded, only for steel grades P195 and P235 with D d 114,3 mm	BW	As (hot) rolled strip	Hot forming (+ welded)	As welded	x	-
a As welded = no heat treatment; NP = Full pipe normalised ; NW = Normalised weld zone; NR= Normalised rolled b For tubes of quality TR2 , only high-frequency welding, minimum frequency 100 kHz, (symbol = HFW) is permitted.

EN10217-1 P195 TR2 Welded Steel Pipe











































GNEE EN10217 P195 TR2 ERW Pipe for Sale

• EN10217-1 P195 TR2 Welding Thin Exhaust Pipe
• EN10217-1 P195 TR2 ERW Carbon Steel Pipe
• EN10217-1 P195 TR2 Welding Rectangular Tubing
• EN10217-1 P195 TR2 High Frequency Welded Pipe

GNEE Services

• Custom Steel Pipe Services: thickness, width, length, surface, etc.
• Steel Pipe Processing Services: grooving, beveling, threading, cutting, coating, etc.
• Steel Pipe Inspection Services: appearance inspection, chemical element analysis, physical performance testing, non-destructive testing, eddy current testing, hydrostatic testing, impact testing, flaring testing, etc.
