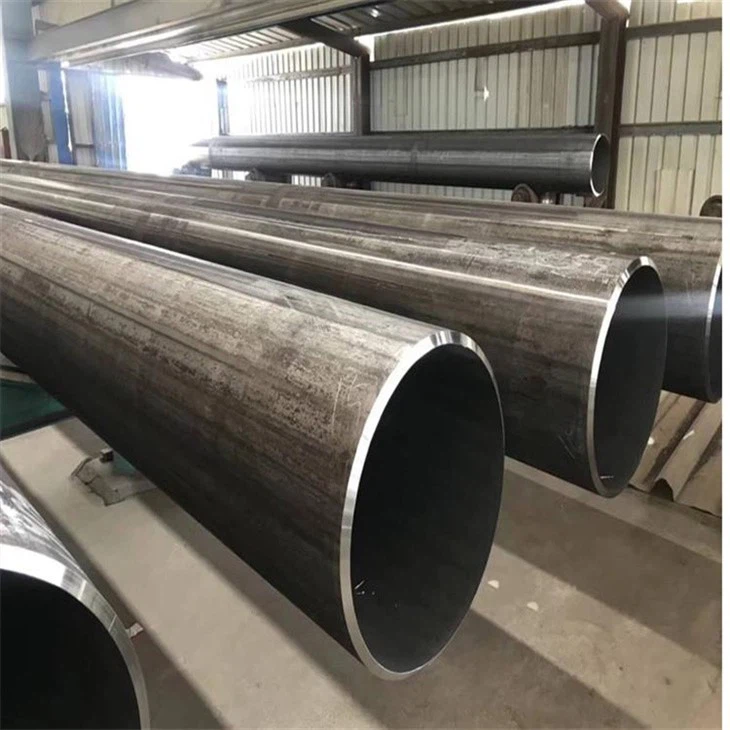

High Quality Electricfusion Welded Pipe
High Quality Electricfusion Welded Pipe

A691 1-1/4CR Alloy Steel EFW Pipes

Name: China A691 1-1/4CR Alloy Steel EFW Pipes Manufacturers Suppliers - GNEE Pipe
Brand: GNEE
SKU: 233061357

Outer Diameter: 457-1422mm
Wall Thickness: 2-60mm,SCH10 SCH20 SCH30 STD SCH40 SCH60 XS SCH80 SCH100 SCH120 SCH140 SCH160 XXS
Length: Single random length/Double random length,5m-14m,5.8m,6m,10m-12m,12m or as customer's actual request

Send Inquiry

Chat Now

Product Introduction

A691 1-1/4CR Alloy Steel Pipe Description

A691 1-1/4CR steel pipe standard covers electric-fusion-welded carbon and alloy steel pipes with filler metal added, made from pressure vessel quality plates of various analyses and strength levels, suitable for high-temperature and high-pressure conditions. Heat treatment may or may not be required to achieve the desired mechanical properties or to comply with applicable specification requirements. Supplementary requirements are provided for additional testing or inspection when required. A691 1-1/4CR steel pipes are typically produced with an outside diameter of 16 inches (405 mm) or larger, and wall thickness not exceeding 3 inches (75 mm).

As a professional supplier of A691 electric-fusion-welded pipes, GNEE Group can provide A691 1-1/4CR, A691 2-1/4CR, A691 5CR, and A691 9CR electric-fusion-welded pipes, along with reports on mechanical properties and non-destructive testing. GNEE Group offers steel pipes at prices lower than those from India. If you have any needs, please feel free to contact us.

ASTM A691 1-1/4CR Pipe Specification

Grade	Alloy Steel A691 Grade1 1/4 CR
Origin	China
Thickness	2-60 mm
End	Plain End, Beveled End, Treaded
Type	Seamless / ERW / Welded / Fabricated / LSAW Pipes
ASTM A691 Grades	ASTM A691 Gr 11, ASTM A691 Gr.91, ASTM A691 9cr, ASTM A691 5cr, ASTM A691 1 1/4cr Cl22, ASTM A691m, ASTM A691 Gr.5cr Cl22, ASTM A691 Cm70, ASTM A691 Class 22, ASTM A691 Class 42, ASTM A691-91, ASTM A691 Grade 2.1/4cr, ASTM A691 11/4cr Cl22
Application	Alloy-Steel Pipe for High-Temperature Service
Class Designation	Class 10, 11, 12, 13, 20, 21, 22, 23, 30, 31, 32, 33, 34, 40, 41, 42, 43, 50, 51, 52, 53, 60, 61, 62, 63, 70, 71, 72, 73
Schedules	SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Craft	Cold rolled and Cold drawn
O.D.	457-1422 mm
Length	Single random length/Double random length,5m-14m,5.8m,6m,10m-12m,12m or as customer's actual request
Available Form	Round, Square, Rectangular, Hydraulic Etc.
Specialized in	Large Diameter ASTM A691 Pipe
Additional Testing	Visual inspection, chemical properties testing, mechanical properties testing, and non-destructive testing

ASTM A691 1-1/4CR Pipe Chemical Composition

	1-1/4CR
C	0.05-0.17
Mn	0.40-0.65
P	0.025
S	0.025
Si	0.15-0.40
Cr	0.80-1.15
Mo	0.45-0.60
V	–

ASTM A691 1-1/4CR Alloy Pipe Mechanical Properties

Class	Heat Treatment on Pipe Section see:	Radiography, see Section	Pressure Test, see :
12	none	9	8.3
22	stress relieved, see 6.3.1	9	8.3
32	normalized, see 6.3.2	9	8.3

A691 Alloy Pipe

A691 EFW Pipes A691 Welded Pipe

FAQ

Q: Do you accept customization of pipes?

A: Yes, but customers are required to provide detailed information such as size, quantity, material, etc. of customized pipes.

Q: What should I do if the pipe I receive are defective?

A: We can raise samples for you before the order is shipped. If the pipes you receive do not match the samples, we will refund you or you can choose to reissue the pipes.

Q: Are you a manufacturer or trader?

A: GNEE Group is a trading company with 16 years of experience in producing and supplying steel products. We have 20 steel pipe production lines and 5 pipe fitting production lines. Can provide you with customized services. You are welcome to visit our factory and company.

Q: Can you provide samples? Are there any fees?

A: We can provide you with pipe samples, but the logistics costs need to be paid by the customer.

Q: What is the delivery time of pipes?

A: Spot delivery time: 3-7 days after receiving advance payment.

Customized delivery time: 20-30 days after order confirmation.

Q: What is your minimum order quantity of efw pipes?

A: For regular sized welded pipe, we have a large stock of tubes in stock with no MOQ required. For custom sizes, the MOQ is 30 tonnes.

Q: What is your payment term?

A: Our payment terms are L/L, T/C.

Q: What is your term of trade?

A: Our terms of trade are FOB, CIF, CFR, DDP,EXW.
