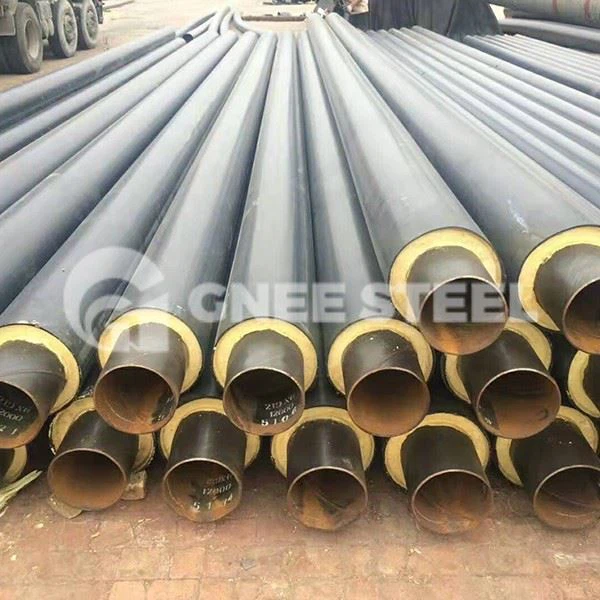

Thermal Insulation Steel Pipe



Insulation pipe is the short form of thermal insulation pipe, insulation pipe is used for liquid, gas and other media transportation, in petroleum, chemical, aerospace, hot springs ~ military, centralized heating, central air-conditioning, municipal and other pipeline insulation project insulation.

Insulation pipe Specification

Wall Tickess	0.5mm-16mm
Length	1m-12m ,or by customer's requirements
Production Standard	API 5L PSL1/ PSL2, ASTM A53, ASTM A252, GB/T9711.1, GB/T3091, SY/T 5037-2012, DIN1626, EN10219, EN10217
End	30~35° Beveled end
Quality Control	100% X-Ray inspection 100%Hydraulic Pressure test 100% Ultrasonic inspection
Internal lining	Epoxy , cement motar, and according to customers requirement
Operating pressure	<1.6Mpa
Laid way	Buried, overhead, trench
Grade of the steel pipe and pipe fitting	20#/Q235 Seamless steel pipe and spiral steel pipe (GB and oil standard)
Insulation material	Fluoride-Free water foamed rigid polyurethane foam material (foam density: 60kg/m3-80kg/m3
Inner surface tension of the high density polyethylene pipe	≥50dy/cm

Steel Pipe With Heat Insulation



































Insulated Pipe - Features

1. Strong corrosion resistance and waterproof capability, with low overall costs.
According to estimates by relevant departments, dual-pipe heating systems generally reduce project costs by around 25% (when using fiberglass as the protective layer) and approximately 10% (when using high-density polyethylene as the protective layer).

2. Low heat loss, energy-saving. Heat loss is only 25% of traditional pipe materials.
Direct-buried insulated pipes have a thermal conductivity of 0.022 kcal/m.h.℃ and a water absorption rate of 0.03 kg/cm³.

3. Long service life.
Proper installation and use can extend the network's lifespan to 30-50 years, with minimal maintenance costs.

4. Minimal land occupation, fast construction, beneficial for environmental protection.
Can reduce excavation volume by over 50% and decrease the amount of masonry and concrete used by 90%.
