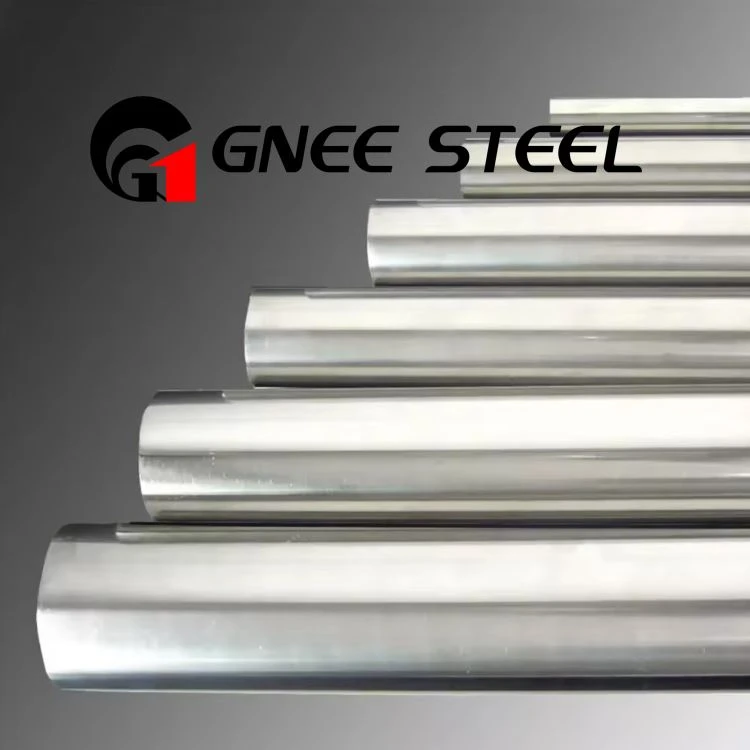

Stainless Steel 310 Welded Steel Tube
Ensuring the quality and reliability of the raw materials for Stainless Steel 310 Welded Steel Tube involves several critical measures:
Chemical Composition: The raw material must have a precise chemical composition that meets the specifications for Stainless Steel 310, which includes high levels of chromium (24-26%), nickel (19-22%), and controlled carbon content (max. 0.25% for 310 and up to 0.10% for 310H) to ensure excellent high-temperature properties and good ductility.
Melting Practice: The steel should be melted in a way that ensures homogeneity and purity. Electric furnace melting, followed by ladle refining and vacuum degassing, is often used to produce clean and homogeneous steel.
Manufacturing Process: The tubes must be manufactured using a controlled welding process that ensures the weld seam's integrity and the material's mechanical properties are maintained. The welding parameters, such as current, voltage, and speed, must be optimized for the best results.
Heat Treatment: After welding, a solution annealing treatment (heat to 1040-1150°C and cool rapidly) is recommended to restore ductility and maximize corrosion resistance, especially after service above 650°C.
| Material Grade | TP304 TP304L TP316 TP316L TP347 TP347H TP321 TP321H TP310 TP310S |
| TP410 TP410S TP403 | |
| S31803/S32205 S32750 S32760 | |
| Outer Diameter | Seamless Pipe: 4mm-812.80mm |
| Welded Pipe: single slit(Φ8mm-Φ630mm); girth(Φ630mm-Φ3000mm), | |
| Thickness | Seamless Pipe: 0.5mm - 60mm |
| Welded Pipe: single slit(0.5mm-25mm);girth(3mm-45mm) | |
| Length | 5.8-6.1 m or as customers' request |
| Tolerance | Acording to the Standard. |
| Surface | 180G, 320G, 400G Satin / Hairline |
| 400G, 500G, 600G or 800G Mirror finish | |
| Test | UT, ET, HT, RT,ect, and others according to the standard,or as the requests of the customers |
| Certificate | ISO9001-2008,ASME, PED |
| Delivery Time | 7-30 Days, Depends on quantity |
Stainless Steel 310 Welded Steel Pipe
FAQ:
Q1: What's your terms of payment?
A: 30%T/T as the upfront deposit, 70% before delivery, We will show you the photos and package before you pay the balance.
Q2: What's the terms of delivery?
A: EXW, FOB, CFR, CIF
Q3: What's the terms of packing?
A: Generally,we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers' requirement.
