What OCTG Is

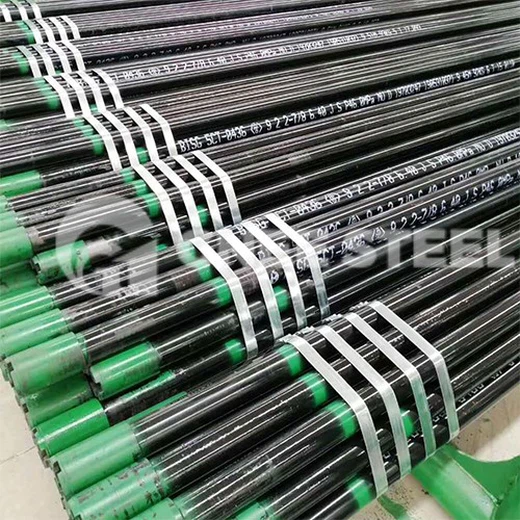

Oil Country Tubular Goods, or OCTG, is the family of pipe products used to construct and operate oil and gas wells. The main classes are casing, tubing, and drill pipe, and they are defined by API 5CT for casing and tubing and API 5DP for drill pipe. Casing is the pipe lowered into the drilled borehole and cemented in place to prevent the wall from collapsing and to isolate the formations; tubing is the pipe run inside the casing that carries oil, gas, water, and treating fluids to and from the producing zone; drill pipe transmits the rotation and fluid to the drill bit. Line pipe, by contrast, is the pipe used to transport the produced fluids along the surface, covered by API 5L.
The Product Classes
Tubing is used for production and for operations such as water injection and acid fracturing, and it must withstand the internal pressure and the corrosive produced fluids. Casing lines the borehole and carries the structural and pressure loads of the well, with surface, intermediate, and production strings depending on the well design. Drill pipe is the rotating string that drills the hole, with heavy wall and tool joints, and it is handled and inspected differently from casing and tubing. The class is selected by the well design, the depth, and the service conditions.
Grades and Properties
The common API 5CT grades are J55, N80, L80, and P110, with the number giving the minimum yield strength in ksi. J55 is the economy grade for shallow and low-pressure wells; N80 provides medium strength; L80 is a controlled-yield grade with restricted hardness for corrosive and hydrogen-sulphide service; and P110 is the high-strength grade for deep, high-pressure wells. The grades differ in yield range, hardness limit, and resistance to sulphide stress cracking, and the choice follows the well depth, pressure, and the corrosivity of the produced fluids.
End Finishes and Connections

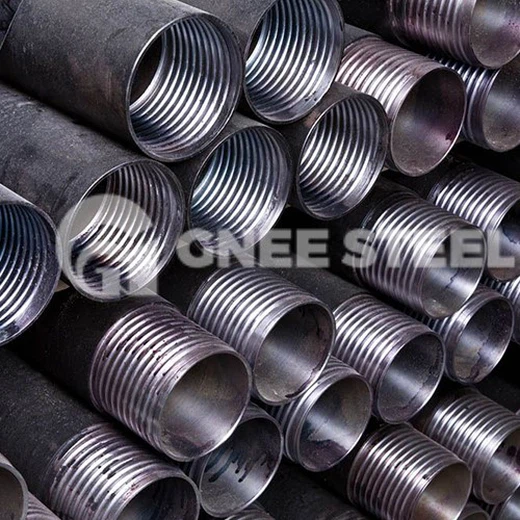

The pipe ends are finished for the threaded connections. External upset end (EUE) thickens the pipe end before threading, giving a stronger joint for tubing; non-upset ends (NUE) are used for lower-pressure service. The connections include API threads and premium couplings, which are selected for their sealing and bending performance in the well. The couplings, including EUE, AB modifications, turned, and special-clearance types, are supplied with the pipe, and pup joints in the same grade and connection complete the string.
Sizes and Accessories
OCTG is produced in the API size range, with tubing commonly available from 2 3/8 inch to 4 1/2 inch outside diameter and casing from 4 1/2 inch to 20 inch and larger. The wall thickness and the connection type are selected for the design loads. Accessories include the couplings, thread protectors, and pup joints, and the strings are made up with the correct torque per the connection specification.
Manufacturing and Testing
Seamless OCTG is produced by piercing and rolling, then heat-treated to the grade, with the threaded ends processed after the heat treatment. Each joint is subjected to the full-length and end-area inspection of the standard: hydrostatic testing, drifting to verify the internal clearance, full-body and end ultrasonic or electromagnetic inspection, and dimensional checks of the threads. Third-party inspection can be arranged to the project requirements, and the mill certificate documents the heat, the mechanical results, and the inspection results for the lot.
Frequently Asked Questions
Q: What does OCTG stand for?
Oil Country Tubular Goods: the casing, tubing, and drill pipe used in oil and gas wells, defined by API 5CT and API 5DP.
Q: What is the difference between casing and tubing?
Casing lines the borehole and is cemented to prevent collapse; tubing runs inside the casing to carry the produced fluids. The two have different sizes, connections, and design loads.
Q: What are the common API 5CT grades?
J55, N80, L80, and P110, with the number as the minimum yield strength in ksi and different hardness and corrosion limits.
Q: What is EUE?
External upset end: the pipe end is thickened before threading to give a stronger joint, used for tubing connections.
Q: What tests are performed on OCTG?
Hydrostatic testing, drifting, ultrasonic or electromagnetic full-body inspection, thread dimensional checks, and the mechanical tests of the standard.
Q: What sizes are available?
Tubing commonly runs from 2 3/8 to 4 1/2 inches OD and casing from 4 1/2 to 20 inches and larger, with the size and wall selected for the well design.
