Why Grade Identification Matters
Using the wrong grade of steel in a pressure, structural or corrosion resistant application is a serious risk, and the mistake is easy to make when mill markings are lost, mixed stock is stored in one rack, or cut lengths are no longer traceable to a certificate. Grade identification therefore combines paperwork, simple shop floor tests and, when the consequence of error is high, an instrumental analysis of the chemistry. The methods below are arranged from the quickest and least expensive to the most definitive.
Start with the Markings and Documentation
The first and cheapest check is the marking on the product itself. Tubing, bar stock and plate are commonly stamped, ink marked or laser etched with a grade code such as a stainless steel number, a structural steel designation, or a standard reference. A complete marking usually contains the standard number, the grade and the heat number, and the heat number allows the certificate to be retrieved from the mill record.
Where marking has been removed by cutting or grinding, the certificate and the material test report become the primary evidence. A practical control is to re-mark every cut length with the heat number immediately after cutting, so that traceability is never interrupted on the shop floor.
Magnetism Test: A Fast First Separation
A strong permanent magnet separates the main families of steel in seconds. Austenitic stainless steels of the 300 series, including the widely used 304 and 316 types, are essentially non-magnetic because of their austenitic crystal structure. Ferritic, martensitic and duplex stainless steels are magnetic, and carbon steels are strongly magnetic.
Two cautions apply. Cold working such as bending, cutting or forming can produce a slight magnetic response in an austenitic stainless steel, but the attraction remains much weaker than in ordinary carbon steel. Conversely, if a piece marked as 304 is strongly magnetic, it is likely to be a different grade, often a ferritic stainless steel or a carbon steel, and should be verified before use.
Spark and Grind Test
Grinding a small, inconspicuous area and observing the spark stream gives a trained operator a rough indication of carbon content and alloy family. Long, streaming sparks with a white to yellow colour suggest a carbon steel, while shorter, redder and less prolific sparks suggest a stainless steel. The spark test is qualitative: it can separate families and flag an obvious mistake, but it cannot confirm a specific grade or a narrow chemistry window, so it should never be the only evidence for a release decision.
Chemical Spot Testing
Spot test kits use reagents that produce a colour change in the presence of a particular alloying element, most often molybdenum or nickel. They are useful for verifying that a length of tubing is genuinely a molybdenum bearing grade rather than a plain 304 substitute, and they can be applied directly to finished pipe without cutting a sample. The test is semi-quantitative and its reliability depends on surface preparation and on the kit being within its shelf life, so the result is best treated as supporting evidence.
Instrumental Analysis: XRF and OES
| Method | What it provides | Typical use |
|---|---|---|
| X-ray fluorescence (XRF) analyser | Elemental composition within seconds from a handheld device | Incoming inspection, positive material identification on site |
| Optical emission spectrometry (OES) | A detailed laboratory chemical breakdown with low detection limits | Grade confirmation, verification of carbon and light elements |
A handheld XRF analyser is the practical tool for confirming grade on the shop floor or at a construction site, because it screens every delivered length quickly and reports the alloying elements that distinguish one stainless grade from another. OES requires a laboratory sample but resolves carbon, nitrogen and other light elements that XRF cannot measure reliably, which matters when a specification limits carbon or requires a fine grain treatment.

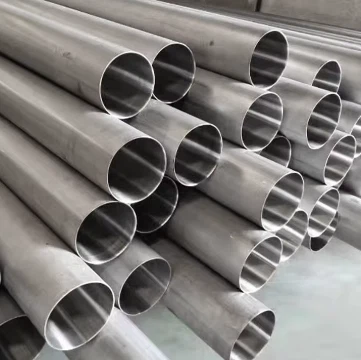

Identifying Stainless Steel Tubing Step by Step
Read the marking: grade numbers such as 304 or 316L and standard references are usually the quickest answer.
Apply a strong magnet. Non-magnetic behaviour points to a 300 series austenitic grade, while a magnetic response indicates a 400 series stainless steel or a carbon steel.
Grind a small area and compare the spark stream with reference samples of known grade.
Run a reagent spot test for molybdenum or nickel when the difference between two similar grades has a commercial consequence.
Finish with a handheld XRF analyser on any length that remains uncertain, and retain the readings with the material record.
Acid Tests and the Acids That Attack Stainless Steel
Acid can be used to distinguish stainless steel from carbon steel, but only under controlled conditions. A drop of nitric acid placed on a clean surface produces little or no reaction on stainless steel, because the chromium oxide passive layer resists attack, while carbon steel reacts vigorously and bubbles. A dilute nitric acid drop darkens 400 series magnetic stainless steel but leaves 300 series grades unaffected, and a hydrochloric acid based reagent turns 304 brown while severely rusting carbon steel. Acid testing is hazardous and should be performed only by trained personnel using gloves, eye protection and suitable ventilation.
The acids that damage stainless steel are the ones that destroy the passive layer. Hydrochloric acid and sulphuric acid are highly corrosive and cause severe pitting and general corrosion on most stainless grades, so they are never used for cleaning. Concentrated organic acids such as formic acid and acetic acid can also be corrosive, and even acids that a grade tolerates at low concentration and room temperature, such as phosphoric acid, become aggressive at higher concentration and elevated temperature. Concentration and temperature together determine whether a given acid is acceptable for a given grade.
Frequently Asked Questions
Q: Is 304 stainless steel magnetic?
No. 304 is austenitic and normally non-magnetic. Cold working may produce a slight magnetic response that is much weaker than in carbon steel, and a strong attraction indicates a different grade.
Q: Can stainless steel be tested with acid?
Yes, with caution. A nitric acid drop leaves stainless steel essentially unchanged but reacts strongly with carbon steel, and dilute acid drops help separate 300 series from 400 series grades.
Q: How do you check the grade of steel?
Read the grade marking first, then use the spark test for a rough estimate, the magnet test to separate austenitic stainless from other steels, chemical spot testing for specific elements, and XRF or OES for definitive identification.
Q: What acid damages stainless steel?
Hydrochloric acid and sulphuric acid cause severe pitting and general corrosion. Concentrated organic acids are also damaging at elevated temperature, and acid behaviour in general depends on both concentration and temperature.
Q: How do you identify stainless steel tubing?
Look for stamped grade and standard markings, apply a magnet, grind a small area to compare the spark pattern, run a nitric acid spot test if permitted, and confirm the result with a handheld XRF analyser when certainty is required.
Q: Is XRF enough for final grade confirmation?
For most alloying elements it is sufficient and very fast. When the specification limits carbon, nitrogen or a fine grain addition, an OES laboratory analysis is the appropriate confirmation method.
