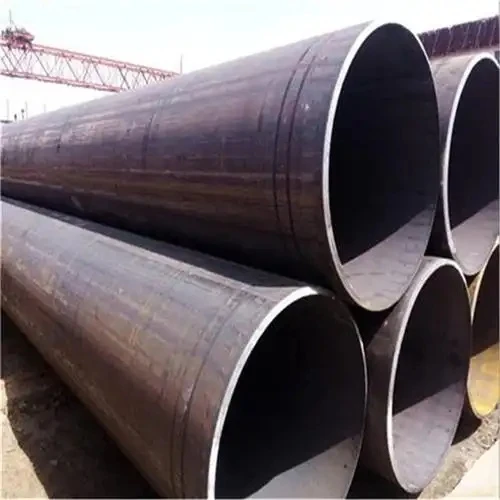

S355JR Longitudinally Submerged Arc Welding Pipe

Product Introduction of LSAW Longitudinal Submerged Arc Welded Pipe

Longitudinal submerged arc welded pipe is a high-performance welded pipe formed in one piece along the longitudinal direction of the steel plate using advanced submerged arc welding technology. Its core advantage lies in the use of multi-wire submerged arc welding technology, resulting in a high-quality weld with uniform penetration and a non-destructive testing pass rate exceeding 99%. Combined with JCOE precision forming technology, the product possesses both a yield strength of up to 355MPa and a tensile strength of 470-630MPa. After diameter expansion, the steel pipe achieves extremely high dimensional accuracy of ±0.1%D, perfectly meeting the stringent requirements of pressure-bearing critical components such as oil and gas pipelines and wind power generation towers, and has passed international certifications such as EN 10210 and API 5L.

UOE SAWL Pipes

Outside Diameter	Φ219mm- 1118mm (20"- 44")
Wall Thickness	6.0-25.4mm 1/4"-1"
Quality Standards	API,DNV,ISO,DEP,EN,ASTM,DIN,BS,JIS,GB,CSA
Length	9-12.3m (30'- 40')
Grades	API 5L A-X90,GB/T9711 L190-L625

JCOE SAWL Pipes

Outside Diameter	Φ406mm- 1626mm (16" - 64" )
Wall Thickness	6.0- 75mm (1/4" - 3" )
Quality Standards	API,DNV,ISO,DEP,EN,ASTM,DIN,BS,JIS,GB,CSA
Length	3-12.5m ( 10'- 41' )
Grades	API 5L A-X100, GB/T9711 L190-L690

Features Of Longitudinally Submerged Arc Welding Steel Pipe

- Large diameter
- Thick walls
- High pressure resistance
- Low temperature resistance

 About us

GNEE STEEL Group is a steel export trading company specializing in the export of S355JR series welded steel pipes. We cooperate with leading domestic steel mills, acting as their agents to provide high-quality steel products at competitive prices and with efficient delivery times. We offer a full-process service from steel procurement to export customs clearance, making us a trustworthy partner in China's steel supply chain.
