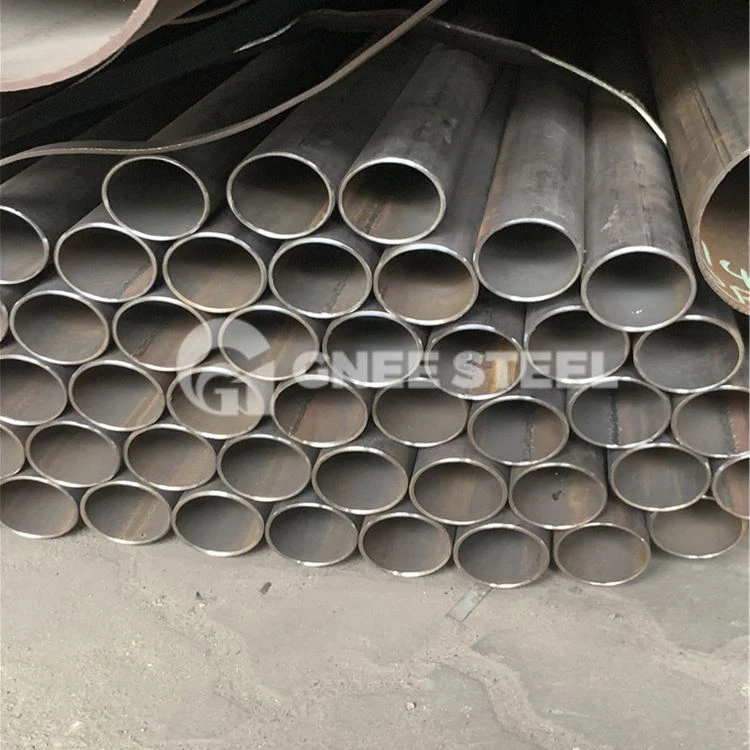

EN10217-2 P195GH Welding Steel Pipe

GNEE Group specializes in manufacturing EN10217-2 P195GH welded pipes. These P195GH welded steel pipes can be used in high, medium, and low-pressure boilers and pressure environments. Additionally, GNEE Group can also produce P195 seamless steel pipes, P195 longitudinal welded pipes, P195 high-frequency resistance welded pipes, P195 pressure welded pipes, and P195 spiral welded pipes. These pipes are produced and tested according to the EN10217-2 standard, ensuring safety for your project engineering. If you require assistance or would like to learn more, please feel free to contact us.

Steel grades used	EN 10217-1 grades: P195TR1, P235TR1, P265TR2 P195TR2, P235TR2, P265TR2 EN10217-2 grades:P195GH,P235GH,P265GH,16Mo3 EN 10217-3 grades:P275NL1,P355N,P355NH,P460N... EN 10217-4 grades:P215NL,P265NL EN 10217-5 grades: P235GH,P265GH,16Mo3 EN 10217-6 grades:P215NL,P265NL EN 10217-7 grades:1.4301(X5CrNi18-10),1.4404(X5CrNiMo17-12-2)
Dimensions and tolerances	For the outside diameter D219,1 D +/-0,75 % or +/- 6 mm depending on which value is greater. The tolerances applied to wall thickness depend on the wall T For T5 +/-8 % or 2 mm (depending on which value is greater)
Pipe lengths	Pipes with precise lengths are manufactured with the following tolerance values: for D406,4- for pipes 0- 6m -0/+25%- for pipes 6-12m -0/+50%- for pipes longer than 12m -0/to be negotiated
Tightness	Pipes should be subject to water testing (7Mpa) or electromagnetic testing.
Straightness	< 0,0015 of pipe length (below 3mm per every meter of pipe length)
Tests	Mandatory tests: ladle analysis, tensile testing, transverse tensile testing of the weld > 508, tightness testing, dimension verification, visual inspection, NDT of the weld Optional tests: transverse tensile testing of the weld D= 219,1- 508, wall thickness measurement at a distance from pipe ends

P195GH Welded Steel Tubes











































GNEE Pipe Packaging and Shipping

GNEE Services:

1. Steel Pipe Processing Services: Cutting, Grooving, Threading, Coating, Beveling

2. Custom Steel Pipe Services

3. Custom Steel Pipe Packaging Services

4. Diverse Steel Pipe Logistics Options
