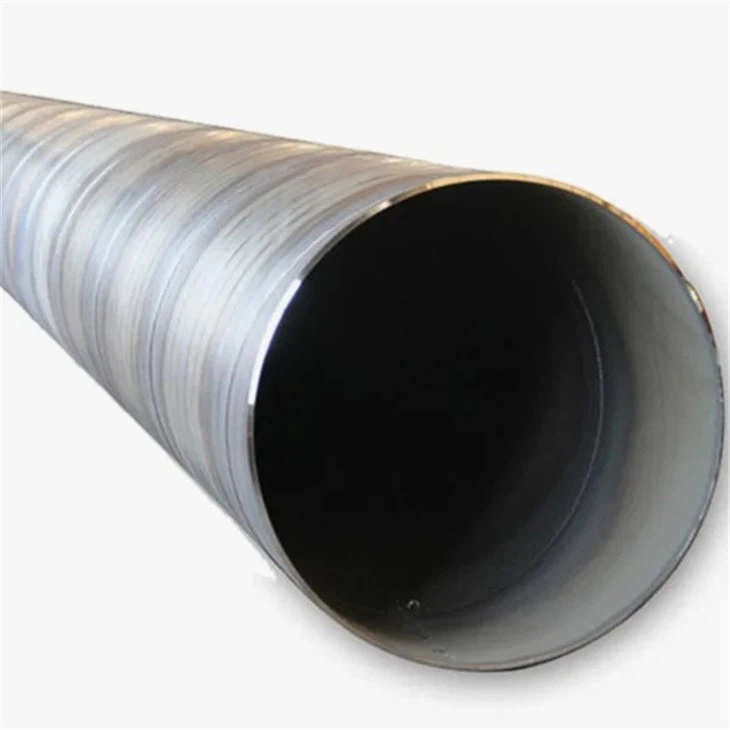

API 5L Grade B Pipe
Applications ：Oil Refineries, Power Generation, Petrochemicals, Sugar, Pressure Vessels, Boiler Equipments,
General Engineering Purposes
Pipe & Tube Form ：Round, Square, Rectangular
Length: Single, Double Random & Length, Custom Size – 12 M lengths
End: Beveled End, Plain End, Treaded End Protection: Plastic Caps
Highly specialized welded pipe supplier
Products Description
API 5L Grade b piping generally refers to welded line pipe used to transport oil and natural gas from one location to another, and these pipelines are primarily used in oil and gas refineries, petrochemical plants, and other industries. These pipes are manufactured in two product specification grades called PSL-1 and PSL-2. PSL-1 provides the standard level of quality for line pipe.
API 5L Grade B pipe is not susceptible to cracking under sulfide stress, making it ideal for sour service. This pipe has a minimum yield strength of 245 MPa or approximately 35,500 psi. API 5L Grade B has a long working life, making it very cost-effective. b PSL-2 Grade B pipe is rigid, compact, and very dimensionally stable. Because it is readily available and affordable, API 5L Grade B pipe is the preferred choice of the oil and gas industry and is being used on a large scale in cross-country pipelines.

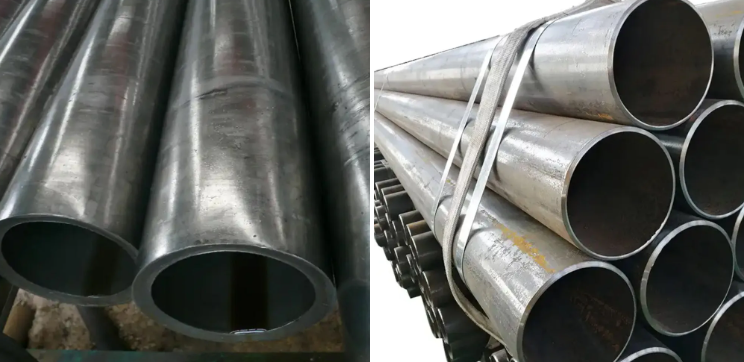

Full range of welded pipe supply
Ordering Information
The purchase order shall include the quantity, PSL level, type or Grade, reference to API5L, outside diameterwall thickness, length and any applicable annexes or additional requirements related to chemicacomposition, mechanical properties, heat treatment, additional testing, manufacturing process, surfacecoatings or end finish.
Acceptance criteria for flattening test shall be
EW pipes D<12.750 in
2 X60 with T20.500in, there shall be no opening of the weld before the distance between the plates is less than66% of the original outside diameter. For all grades and wall, 50%.
For pipe with a D/t > 10, there shall be no opening of the weld before the distance between the plates is lessthan 30% of the oriqinal outside diameter.
Specification Chart of API 5L Grade B Pipe
| API 5L Grade B Seamless Pipe Standard | API 5L standard Grade B steel grade steel pipe/tube (Specification for Line Pipe - ANSI/API specification 5L - 44th Edition, October 1, 2007) |
|---|---|
| API 5L Grade B Pipe Sizes | Nominal Pipe Size 1/2" to 48 " O.D. API 5L Grade B Pipe Wall Thickness - Schedule 10 through 160, STD, XS, XXS. |
| Product Specification Level (PSL) |
API 5L GrB PSL 2 API 5L Gr.B PSL1 |
| API 5L Gr B Pipe Thickness | SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XS, SCH XXS, All API 5L Grade B Pipe Thickness available |
| API 5L Grade B Seamless Pipe End | Plain, Bevel, Screwed, Threaded l245 pipe |
| API 5L GrB Pipes Type | ERW / Welded / Fabricated / CDW |
| API Grade B Line Pipe Length | Single Random, Double Random & Required Length, Custom Size - 12 Meter lengths |
| Finishes of API 5L Grade B Seamless Pipe | 3LPE, 3LPP, Bare, Oiled, Mill Varnish, Galv, FBE Dual, Coal Tar, Concrete Coating and Tape Wrap Grade B Pipe. End Finishes: Square Cut, Threaded, Coupled, Beveled API 5L Grade B Pipe |
| API5L Grade B PSL2 Application & uses | Grade B Pipes are Suitable for Conveying gas, water, oil, and other liquefied media. |
| API 5L Grade B Line Pipe HS Code |
730420 Casing, tubing and Grade B drill pipe, of a kind used in drilling for oil or gas: Casing: 730439 Other Tubes, Grade B Pipes and Hollow Profiles, of Iron or Non-alloy Steel 730410 Grade B Line pipe of a kind used for oil or gas pipelines: Of iron or nonalloy steel: 730441 Tubes, Pipes and Hollow Profiles, of stainless steel , Cold-drawn or cold-rolled (cold reduced) 730451 Tubes, Pipes and Hollow Profiles, of Other Alloy Steel, Cold-drawn or cold-rolled (cold reduced) 730459 Other Tubes, Grade B Pipes and Hollow Profiles, of Other Alloy Steel, 730490 Other Tubes, Grade B Pipes and Hollow Profiles, Seamless, of Iron or Steel 730449 Other Tubes, Grade B Pipes and Hollow Profiles, of Stainless Steel, Seamless 730431 Tubes, Grade B Pipes and Hollow Profiles, of Iron or Non-alloy Steel, Cold-drawn or cold-rolled (cold-reduced) |
| BS EN 10208-2:2009 | Steel pipes for pipelines for combustible fluids. Technical delivery conditions. Pipes of requirement class B. Suitable to use in maximum operating pressure over 16 bar. |
| Grade B Pipe smls | Grade B Pipes Out Diameter: 1-1/4"-16", Grade B Wall Thickness: 0.109"-0.562" |
Customer visits
We have a team of highly skilled professionals dedicated to providing high quality products and services to our customers. Our team has several advantages over our competitors, including：
Technical Expertise:Our team has excellent technical expertise in manufacturing Welded Steel Tubes.
Experience:Our team has years of industry experience and a deep understanding of the market.
Customer Oriented:We are customer oriented and prioritize the needs of our clients.
Responsiveness:Our team is responsive and provides quick solutions to any issues that occur.
Communication:We have excellent communication skills and keep our customers informed throughout the production process.
