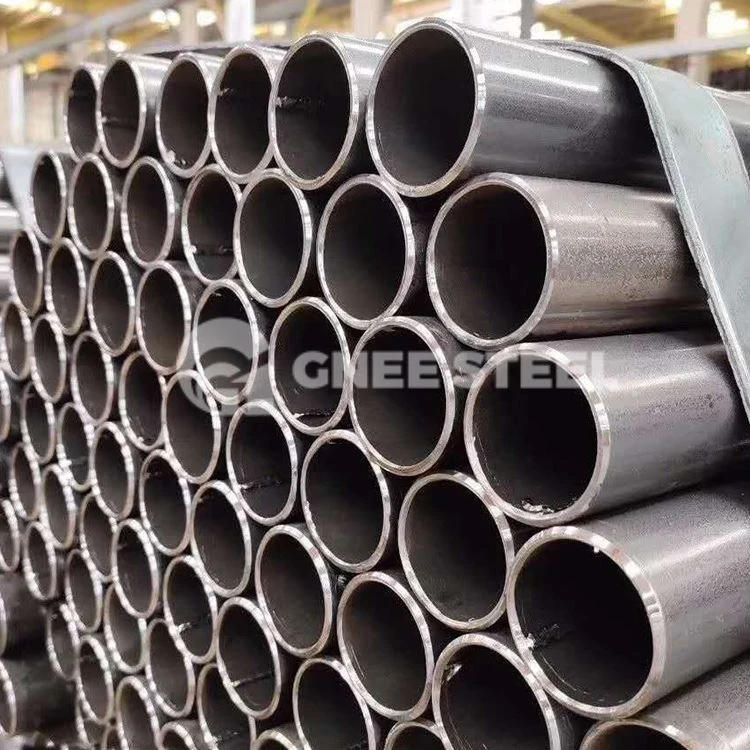

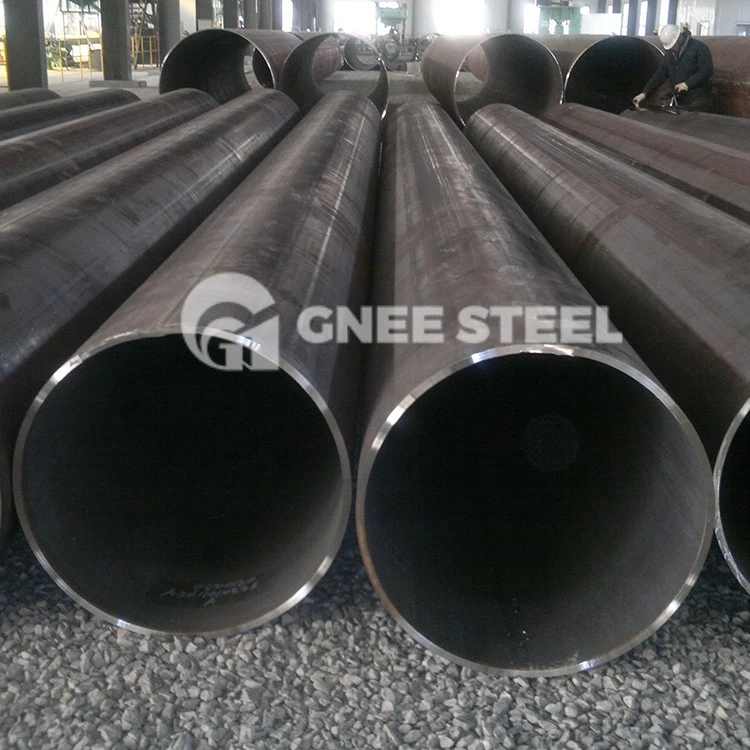

20# Welded Round Steel Pipe

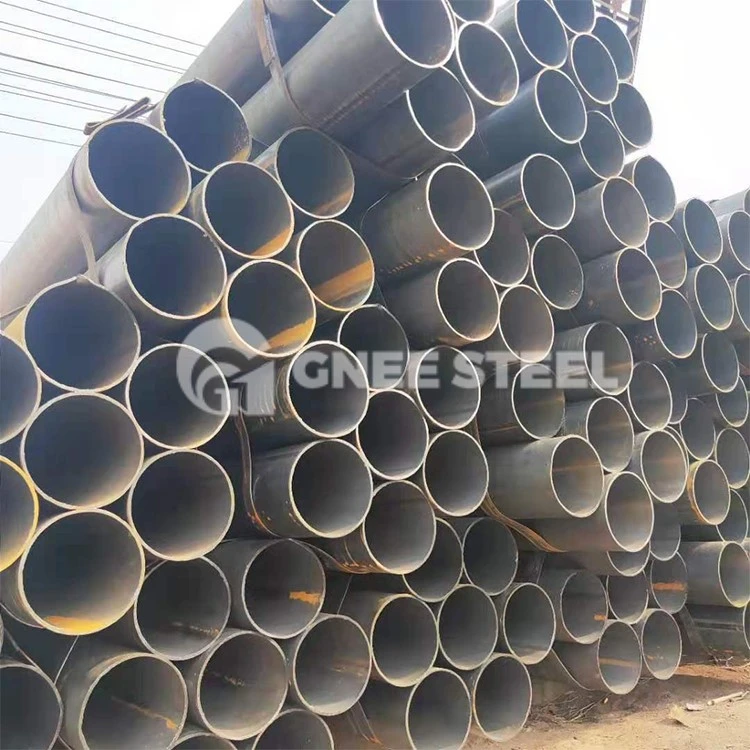

20# Welded Carbon Steel Pipe Description
20# Welded Round Pipe is a kind of welded steel pipe which is made of 20# low carbon steel as raw material, and welded into shape by curling the steel strip or steel plate into a round shape, which is a kind of welded steel pipe.
Structural characteristics of 20# welded round pipe:
Round cross-section, the presence of welded seams (straight or spiral) on the surface, using high-frequency resistance welding or submerged arc welding process to complete the seams;
Compared with seamless steel pipe, 20# welded round pipe has higher production efficiency and lower cost, but weaker pressure-bearing capacity.
Material properties of 20# steel pipe
Chemical composition: the carbon content of 20# steel is 0.17%-0.24%, with low sulfur and phosphorus impurities, belonging to low carbon steel;
Mechanical properties:
Yield strength of about 245 MPa, tensile strength of about 410 MPa, excellent plasticity and toughness, easy cold working (such as bending, stamping);
Welding performance is good, no temper brittleness, but the hardenability is weak.

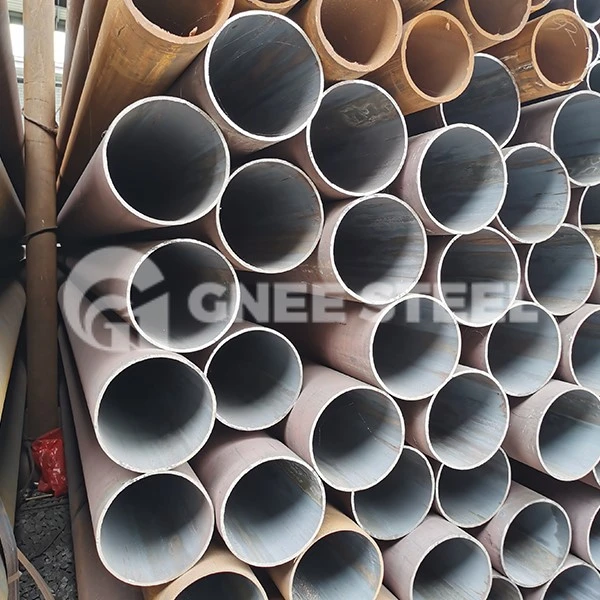

20# Carbon Steel Pipe For Structure Material Specification
|
Type |
20# Welded Steel Pipe |
|
|
Materials |
Q235A,Q235B,10#,20#,Q345(16Mn),L245(B),L290(X42),L320(X46),L360(X52),L390(X56),L415(X60),L450(X65),L485(X70),L555(X80) | |
|
Size |
Outer Diameter |
10.2-660MM |
|
Wall Thickness |
0.8-20MM | |
|
Length |
Single random length/Double random length |
|
|
Ends |
Plain end/Beveled,protected by plastic caps on both ends, cut quare,grooved,threaded and coupling,etc. |
|
|
Surface Treatment |
Bare,Painting black,varnished,galvanized,anti-corrosion 3PE PP/EP/FBE coating |
|
|
Technical Methods |
Hot-rolled/Cold-drawn/Hot-expanded |
|
|
Testing Methods |
Pressure test,Flaw detection,Eddy current testing, Hydro static testing or Ultrasonic examination and also with chemical and |
|
|
Packaging |
Small pipes in bundles with strong steel strips,large pieces in loose; Covered with plastic woven |
|
|
Origin |
China |
|
|
Application |
Conveying oil gas and water |
|
|
Third Party Inspection |
SGS BV MTC |
|
|
Trade Terms |
FOB CIF CFR |
|
|
Payment Terms |
FOB 30%T/T,70% before shipment |
|
|
MOQ |
30 tons |
|
|
Supply Capacity |
5000 T/M |
|
|
Delivery Time |
Usually within 10-45 days after receipt of advance payment |
|
20# welded carbon steel pipe
FAQ
Q: Are you a trading company or a manufacturer?
A: We are a steel factory established in 2008, with a much longer history than other suppliers. Our factory is ISO, EN, API certified and is capable of producing a wide range of steel pipes and fittings.
Q: How long is your delivery time?
A: If it is in stock, it is generally 5-10 days. If it is not in stock, it is 15-20 days, depending on the quantity.
Q: Do you provide samples? Is it free or do you need to pay extra?
A: Yes, we can provide samples for free, but we don't pay for the shipping.
Q: What are your payment terms?
A: Payment <= $1000, 100% prepaid. Payment >= $1000, 30% prepaid T/T, the balance paid before shipment.
Q: What is the minimum order?
A: 30 tons, since we are a factory, the cost of small orders is relatively high, we prefer orders above 30 tons.
