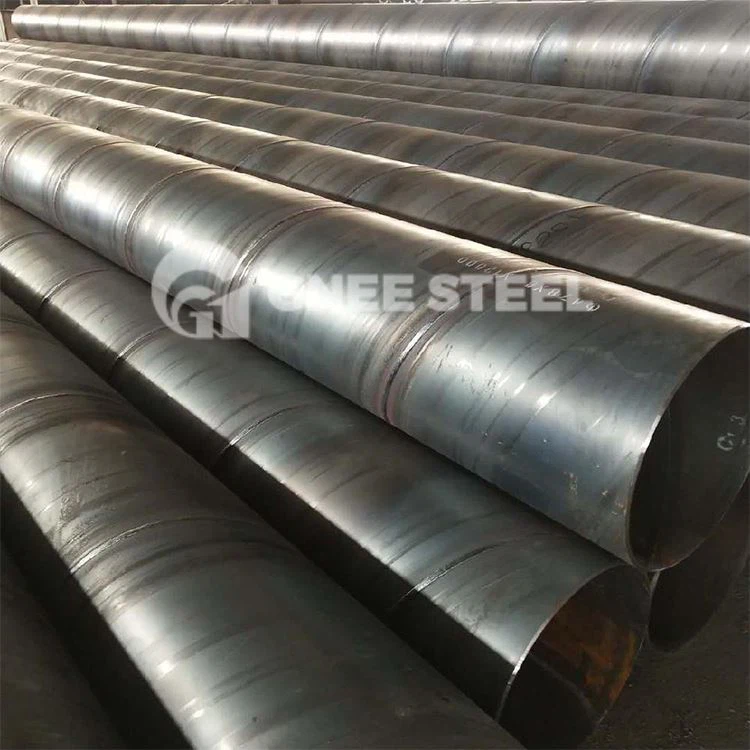

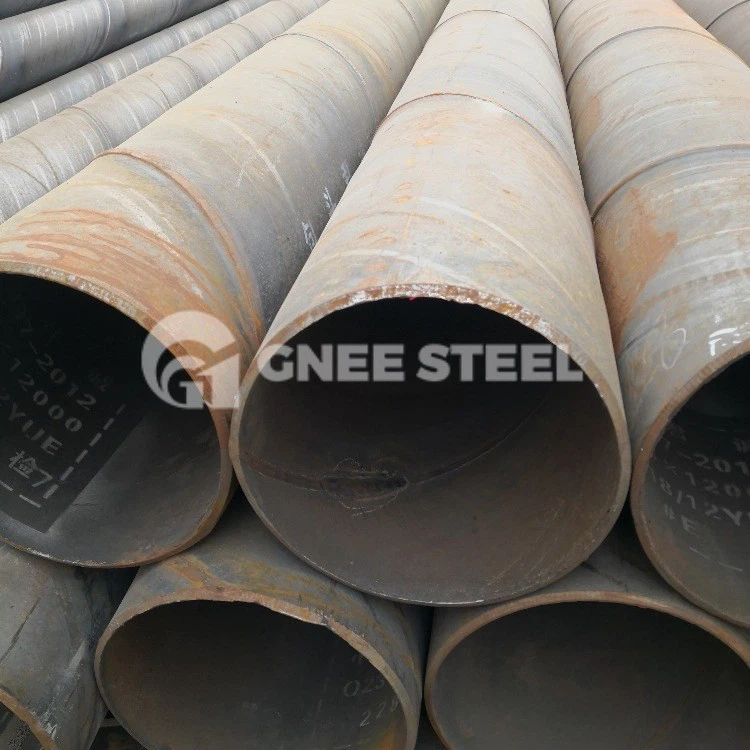

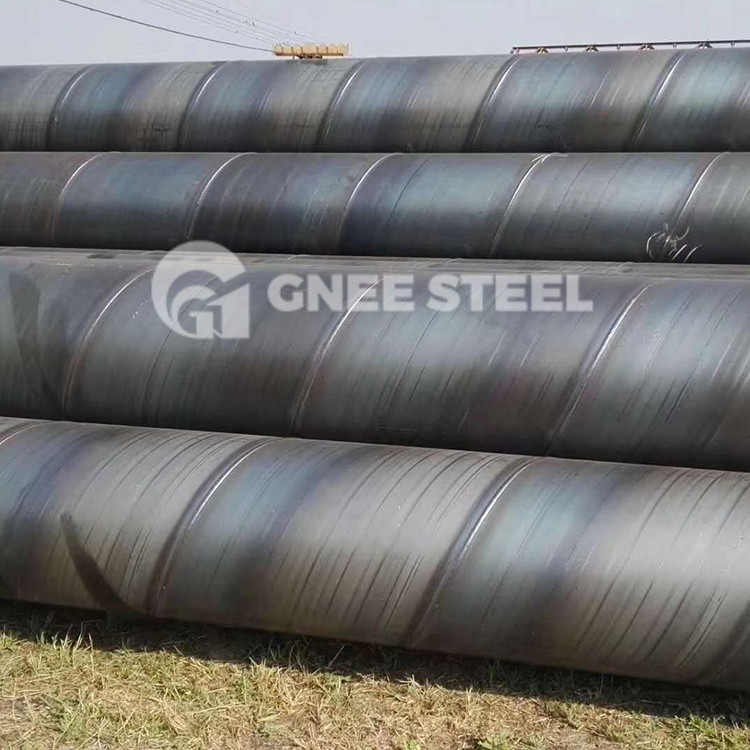

L360 Spiral Submerged Arc Pipe
L360 welded spiral steel pipe Description
L360 spiral welded pipe is a spiral welded steel pipe made of L360 steel grade (minimum yield strength ≥ 320MPa), which is specialised in the transport of oil, natural gas and other fluids. It has high strength and large diameter manufacturing capability by coiling steel strip through spiral forming process and connecting welds with double-sided submerged arc welding technology.
Implementation standards:
International general API Spec 5L (American Petroleum Institute standard).
Domestic in line with GB/T 9711 (oil and gas industry transmission steel pipe delivery technical conditions).
Material type: Low alloy high strength steel (such as Q235, 16Mn or special pipeline steel) is used to balance the strength and toughness by optimising the ratio of carbon, manganese and other elements.
Typical composition (in mass fraction):
C≤0.20%, Si≤0.45%, Mn≤1.60%, P ≤0.020%, S≤0.010%, and contains trace V, Nb and other alloying elements, carbon equivalent (CEV) ≤0.45%.
Forming and welding:
After the steel strip is formed by cold-pressing spiral forming, double-sided submerged arc welding process is adopted, using the arc to melt the wire and base material under the flux layer to form a weld, ensuring welding efficiency and quality.
Key control points include: adjusting the amount of underpressure of the forming rolls, ensuring the straightness of the row of rolls, and replacing worn parts in time to improve geometric accuracy.
L360 Welded Round Steel Pipe Specification
| Product name: | L360 Spiral Submerged-arc Welded Steel Pipe / SSAW Steel Pipe |
| Usage: | Low pressure liquid delivery, such as water, gas, and oil, Offshore Piling Pipe / Port Construction Pipe, Structure Pipe |
| Standard: | GB/T9711 |
| Certificate: | EN10217, EN10219, API 5L PSL1/ PSL2, API 5CT |
| Out Diameter: | 219.1 - 3048mm |
| Wall Thickness: | 6 - 22mm |
| Length: | Up to 70m |
| Steel Grade: | Q235A,Q235B,10#,20#,Q345(16Mn),L245(B),L290(X42),L320(X46),L360(X52),L390(X56),L415(X60),L450(X65),L485(X70),L555(X80) |
| Surface Treatment: | Fusion bond Epoxy coating, Coal Tar Epoxy, 3PE, Vanish Coating, Bitumen Coating, Black Oil coating as per customer's requirement |
| Test: | Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Bending Test, Blow Test, Impact Test), Exterior Size Inspection, Hydrostatic Test, X-ray Test. |
| Mill Test Certificate: | EN 10204/3.1B |
L360 welded spiral steel pipe
FAQ
Q: About the product price?
A: Due to the cyclical changes in raw material prices, prices vary from period to period.
Q: What certifications do your products have?
A: We have ISO 9001, SGS, EWC and other certifications.
Q: How long does your delivery time take?
A: Generally, our delivery time is within 15-25 days, if there is a great demand or special circumstances, it may be delayed.
Q: Can I visit your factory?
A: Of course, we welcome customers from all over the world to visit our factory.
Q: Does the product have quality inspection before loading?
A: Of course, all our products have undergone strict quality inspection before packing, and unqualified products will be destroyed.
Q: How to pack the product?
A: The inner layer has a waterproof paper outer layer, iron packaging, and is fixed with a fumigated wooden pallet. It can effectively protect products from corrosion during ocean transportation.
