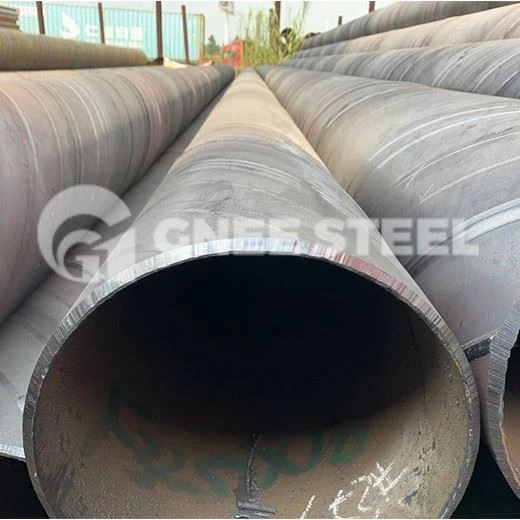

ASTM A572 GR50 Spiral Steel Pipe



ASTM A572 GR50 spiral welded pipe is a spiral welded pipe made of ASTM A572 GR50 high-strength low-alloy steel plate. It is mainly used in bridge engineering, building steel structures, lifting machinery and other scenes that require high strength and good toughness, such as bridge support structures, heavy equipment frames, etc.



Features ‌

• High-strength low-alloy design ‌

‌Yield strength ≥345MPa‌ (thickness ≤16mm), tensile strength 490~600MPa‌, suitable for heavy-duty structural scenarios.
Adding niobium (Nb) and vanadium (V) microalloying elements to improve grain refinement and low-temperature toughness.

• ‌Welding and processing performance ‌

Carbon content ≤0.20%, strict sulfur and phosphorus impurities control (P≤0.04%, S≤0.05%), to ensure the quality of the weld and the matching of the parent material.
Supports high-strength welding processes such as submerged arc welding (SAW) and gas shielded arc welding (GMAW).

• ‌Toughness guarantee ‌

0℃ Charpy impact energy ≥45J, adapting to the needs of cold-region engineering environments





Product Name	ASTM A572 GR50 high strength low alloy Pipe
Standard	ASTM, JIS, DIN, EN, GB
Shape	Round
Base Plate	Hot rolled, cold rolled steel plate
Welding Method	Double-sided submerged arc welding, high-frequency resistance welding
Diameter	3mm-100mm
Length	300mm-12000mm
Thickness	0.4mm-20mm
Grade	GR50, GR60, etc.
Feature	High strength and good heat resistance
Applications	Used for conveying low pressure fluids such as water and gas



Applications

• Heavy structural engineering

Bridge pile foundations and large-span supports (such as φ1200×20mm pipe piles for highway bridge piers);
Wind-resistant columns for super-high-rise buildings, heavy frames for industrial plants.

• Energy and transportation infrastructure

Load-bearing components for mining machinery (conveyor brackets, crusher housings);
Port crane booms, ship deck support structures.

• Special scenario adaptation

Oil and gas pipelines in cold regions (3PE anti-corrosion layer required);
Energy-absorbing components for buildings in earthquake-prone areas (using high elongation ≥22% to absorb kinetic energy).
