ERW API 5L X46/X52 Welded Pipe Line Pipe

ERW API 5L X46/X52 Welded Pipe Line Pipe
ERW API 5L X46/X52 Welded Pipe Line Pipe
ERW API 5L X46/X52 Welded Pipe Line Pipe

ERW API 5L X46/X52 Welded Pipe Line Pipe

End Treatment: Plain End/Bevelled End/Grooved End/Threaded End With Plastic Caps
Technique: Hot Rolled or Cold Rolled ERW
Application: Liquid delivery,structure pipe,construction,petroleum cracking,oil pipe,gas pipe,Hydraulic Pipe

Send Inquiry

Chat Now

Product Introduction

API 5L X46 steel pipe conforms to TSG D7002 pressure piping components type test rules, OD specifications 21.3mm~762mm, wall thickness: 2mm~130mm. API 5L X46 welded pipes are produced by hot-rolled, cold-drawn, hot-expanded, hot-rolled and heat-treated in delivery condition.

API 5L X46 Pipe Specification

Product Name	Carbon Steel Pipe
Material	A53 Gr.B,A36,ST52,ST35,ST42,ST45,X42,X46,X52,X60,X65,X70
Standard	API 5L,ASTM A106 Gr.B,ASTM A53 Gr.B,ASTM A179/A192,ASTM A513,ASTM A671,ASTM A672,BS EN 10217,BS EN10296,BS EN 39,BS6323,DIN EN10217
Certificates	API 5L,ISO9001,SGS,BV
Outer Diameter	15mm-1200mm
Wall Thickness	SCH10,SCH20,SCH30,STD,SCH40,SCH60,SCH80,SCH100,SCH120,SCH160,XS,XXS
Length	1m,4m,6m,8m,12m according to buyer's request
Surface Treatment	black paint,varnish,oil,galvanized,anti-corrosion coated
Marking	Standard marking,or according to your request.Marking Method:Spray white paint
End Treatment	Plain End/Bevelled End/Grooved End/Threaded End With Plastic Caps
Technique	Hot Rolled or Cold Rolled ERW
Package	Loose package;Packaged in bundles(2Ton Max);bundled pipes with slings at the both end for easy loading and discharging;wooden cases;waterproof woven bag
Test	Chemical Component Analysis, Mechanical Properties, Technical Properties, Exterior Size Inspection, hydraulic testing, X-ray Test
Application	Liquid delivery,structure pipe,construction,petroleum cracking,oil pipe,gas pipe,Hydraulic Pipe

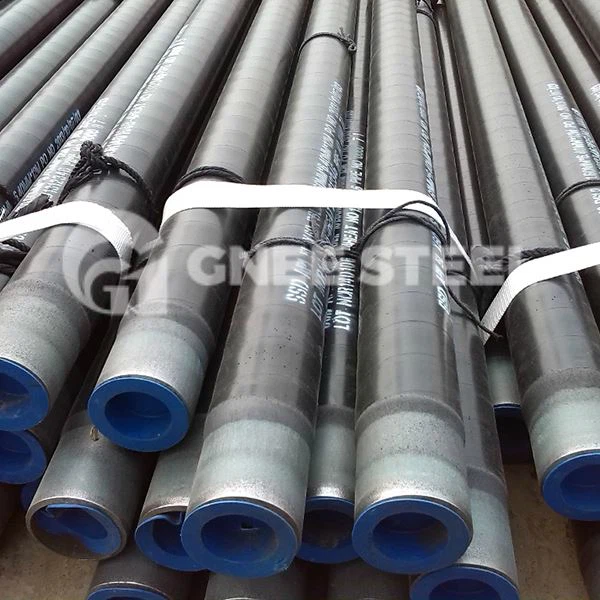

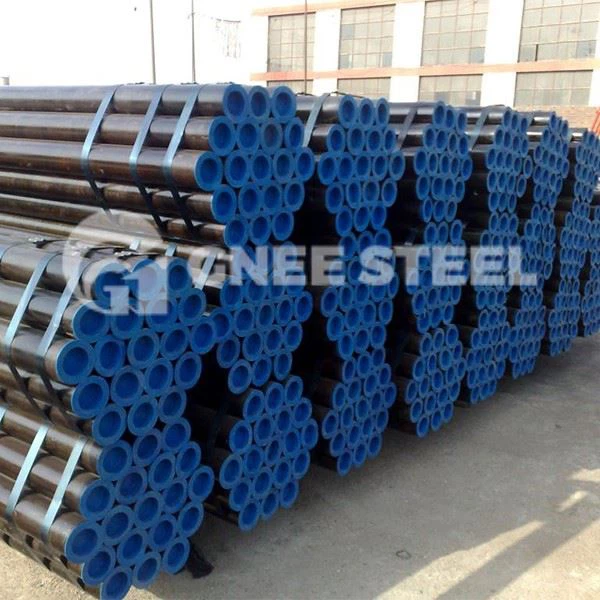

API 5L X46 Welded Line Pipe

FAQ

1. Do you have your own factory?
Yes, our factory is located in Henan Province. You are welcome to visit us anytime.
2.Can you provide samples?
Of course, we can provide samples for free, but customers need to pay the shipping cost.
3.How long is your delivery time?
Specifically, you need to consider the quantity and specification of the order.
4. Will you deliver on time?
Yes, we promise to provide the highest quality products and deliver on time.
5. What are the payment terms?
T/T, L/C, specific payment terms need to be further negotiated and resolved.
