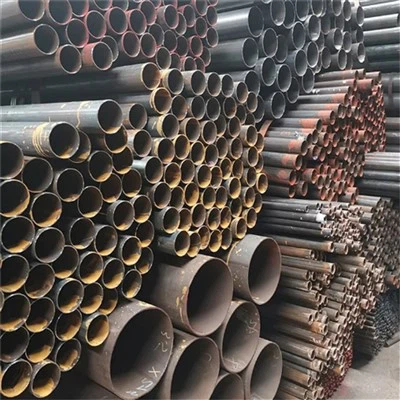

Q235B Resistance Welding Pipe
Q235B resistance welding pipe Product introduction
Welded steel pipes are typically used to transport low-pressure fluids. Materials include Q195A, Q215A, and Q235A steel, as well as other easily weldable low-carbon steels. The pipes must undergo tests such as water pressure, bending, and flattening, and have specific surface quality requirements. Delivery lengths are typically 4-10 meters, but fixed lengths (or double lengths) are also frequently required.
Mechanical Properties
| Property | Metric | Imperial |
|---|
| Tensile Strength | 370-500 MPa | 53.7-72.5 ksi |
| Yield Strength | ≥235 MPa | ≥34.1 ksi |
| Brinell Hardness (HB) | 100-160 HB | 100-160 HB |
| Rockwell Hardness (HRB) | 55-80 HRB | 55-80 HRB |
| Vickers Hardness (HV) | 120-180 HV | 120-180 HV |
| Elongation | 20-26% | 20-26% |
| Elastic Modulus | 200 GPa | 29,000 ksi |
Surface Treatment of Q235B Resistance Welded Pipe
The surface treatment of Q235B resistance welded pipe aims to significantly improve its corrosion resistance and service life. Core processes include hot-dip galvanizing, spraying, and passivation. Hot-dip galvanizing is the most widely used method. After degreasing, pickling, and fluxing, the welded pipe is immersed in molten zinc to form a dense zinc-iron alloy layer and a pure zinc layer, providing excellent cathodic protection and barrier protection. For higher corrosion resistance requirements, epoxy resin or polyethylene coatings can be used, forming a continuous and robust protective layer through electrostatic spraying or fluidized bed dip coating processes. Furthermore, phosphating or passivation treatments can form a stable conversion film on the pipe surface, enhancing short-term rust prevention and providing a good base for subsequent coating. All treatments are based on strict surface pretreatment (such as shot blasting to Sa2.5 grade) to ensure long-term stable coating adhesion and protective effect.
about us
GNEE STEEL Group is an international enterprise specializing in the export of steel products. We are committed to bringing high-quality steel pipe products to the global market. Our mission is to provide one-stop service, and relying on strong supply chain resources and a strict quality control system, our main products cover a wide range of steel pipes, including structural welded pipes, fluid transport pipes, galvanized steel pipes, and special alloy steel pipes, all fully compliant with international standards and certification requirements.
Hot Tags: q235b resistance welding pipe, China q235b resistance welding pipe manufacturers, suppliers
