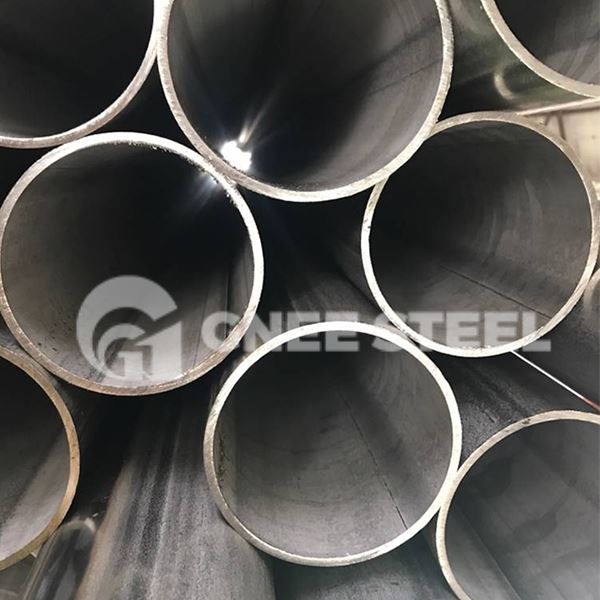

ASTM A358 EFW Pipe
Length: 1 Meter to 12.5 Meters,or Customize Size
Value Added Services: Expansion / Shot Blasting / Heat Treatment
MOQ: 3 Tons
A358 EFW Welded Pipe Description
A358 electric fusion welded pipe is an electric fusion welded austenitic chromium-nickel stainless steel pipe suitable for corrosive or high-temperature conditions, or both, as well as for general applications. A358 welded pipes come in five grades: Grade 1, Grade 2, Grade 3, Grade 4, and Grade 5, each with different meanings and requirements.
A358 Grade 1 pipes must be double welded with filler metal in all weld passes and fully radiographed.
A358 Grade 2 pipes must be double welded with filler metal in all weld passes but do not require radiography.
A358 Grade 3 pipes must be single welded with filler metal in all weld passes and fully radiographed.
A358 Grade 4 pipes are similar to Grade 3 but do not require filler metal in the weld pass exposed to the interior of the pipe.
A358 Grade 5 pipes must be double welded with filler metal in all weld passes and must undergo spot radiography.
Among these grades, A358 Grade 2 pipes are the most commonly used.
A358 Welded Stainless Pipe Specification
| Specifications | ASTM A358 / ASME SA 358 – Class 1, Class 3, Class 2, Class 4, Class 5 |
| Grade | TP 304, TP 304L/H, TP 304LN, TP 316L, TP 316, TP 321/H, TP 347/H |
| Size | 8"NB to 72"NB |
| Thickness | 3mm to 60mm |
| Length | Up to 6 meters, custom cut lengths |
| Wall Thickness | 3mm to 20mm, SCH 5/5S, 10/10S, 20/20S, 40/40S, 80/80S, 120/120S, 160/160S as per ANSI B36.19/36.10 |
| Finish | No.1 Pickled Finish, BA Finish, No.4 finish, Electropolished Seamless Steel Pipes |
| Delivery Condition | Hot Finish, Cold Finish, Bright Annealed, Annealed and Pickled, Polished, Passivated, Stress Relived |
| Application | Food & Beverage Industry, Nuclear, Construction Industry, Thermal & Power Plants, Petrochemical, Boilers, Cement Industry, Geothermal Plants, Instrumentation Jobs, Mechanical Jobs, Heat Exchangers, Oil and Gas Equipments and Piping Works |
| Package |
Plastic caps on both ends, Wooden bag or acc. to customers' request |
A358 Stainless Steel Pipe
