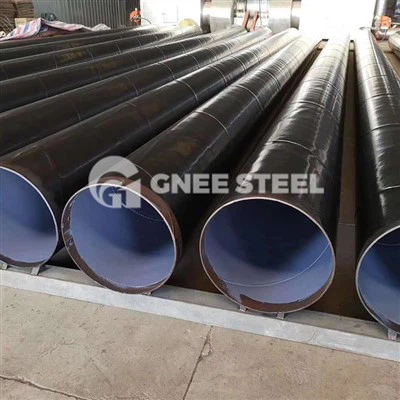

IPN8710 3PE Larger Diameter Anticorrosion Spiral Steel Pipe
3PE Welded Steel Pipe Supplier-GNEE
The polyethylene covering layer has good corrosion resistance and can resist the erosion of the medium inside and outside the steel pipe, but also well isolated from the erosion of air and water on the steel pipe, so as to protect the steel pipe from the damage of corrosion.
|
Product Name |
Anticorrosive Spiral Pipe |
|
Process Method |
Spiral Welded |
|
Standard |
API 5L, API 5CT, ASTM A252, ASTM 53, EN10217, EN10219, BS, JIS, IS |
|
Out Diameter |
219mm – 3620mm (8"-100") |
|
Wall Thickness |
3mm – 30mm |
|
Length |
6-12m or customized |
|
Steel Grade |
Q235B, Q345B, Q235C,Q345C,Q195,Q215 |
|
Surface |
Lightly oiled, Hot dip galvanized, Electro galvanized, Black, Bare, Varnish coating, Anti rust oil, Protective coatings etc. |
|
Test |
Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Bending Test, Blow Test, Impact Test), Exterior Size Inspection, Hydrostatic Test, X-ray Test |
|
Application |
Used for liquid delivery, such as water, gas, and oil |
|
Weight/Meter |
W=0.0246615(D-S)*S W-Per meter weight, kg/m D-Out diameter, mm S-Thickness, mm |
3PE Steel Pipe DN Rang Table
| DN range | O.D range | coating type | coating layer | coating thickness |
| DN100-DN600 | 114.3X609.6 | 3PE layer polyethene | inside layer Epoxy(green) | 2.0-4.5mm |
| middle layer Adhesive(white) | ||||
| outside layer Polyethene(black) | ||||
| DN80-DN600 | 88.9-609.6 | 2PE layer polyethene | inside layer adhesive(white) | 2.0-4.5 |
| outside layer Polyethene(black) | ||||
| DN80-600 | 88.9-609.6 | FEB Epoxy | Epoxy | 200-400um |
| 2FBE | inside layer Epoxy(green) | 400-800um |
Advantages of 3PE anti-corrosion spiral steel pipe:
Strong corrosion resistance: The coating of 3PE anti-corrosion spiral steel pipe has excellent corrosion resistance and can resist the erosion of various chemical substances, ensuring the safety and durability of the pipeline during use.
Complete anti-corrosion layer: The anti-corrosion layer of 3PE anti-corrosion spiral steel pipe consists of a three-layer structure, namely epoxy powder layer, adhesive layer and polyethylene layer. This structure ensures the integrity and reliability of the anti-corrosion layer, making the pipeline less susceptible to corrosion and leakage during water transportation.
Strong anti-aging performance: The polyethylene layer of 3PE anti-corrosion spiral steel pipe has excellent anti-aging performance, which can maintain stable performance for a long time in various harsh environments and extend the service life of the pipeline.
SSAW 3PE Pipe
