API 5CT Tubing And Casing Coupling
What is API 5CT Tubing and Casing Coupling?
An API 5CT Coupling is a short length of heavy-wall pipe used to join two lengths (joints) of casing or tubing.
Tubing Couplings: Used for the internal strings that transport oil or gas to the surface.
Casing Couplings: Used for the structural wall of the wellbore.
Standard: They must comply with the API Spec 5CT standard, which dictates the grade, dimensions, and testing requirements to ensure wellbore integrity.
Skip the middleman and source API 5CT couplings directly from the manufacturer. Contact us for a highly competitive factory-direct price list.
Types of Casing Couplings
Casing couplings are categorized by their thread profile and length:
| Coupling Type | Full Name | Description |
| STC | Short Round Thread | Features a rounded thread profile with 8 threads per inch. Used for shorter strings where high tension isn't the primary concern. |
| LTC | Long Round Thread | Same thread profile as STC but the coupling is longer, providing more engaged threads for higher tensile strength. |
| BTC | Buttress Thread | Features a square/trapezoidal thread profile. Designed to handle high axial tension and better leakage resistance in deep wells. |
| Special Clearance | - | Specially machined (smaller OD) couplings for use in tight wellbores where standard couplings won't fit. |
Size and Specifications for API 5CT Tubing and Casing Coupling
| Type | Connection Type | Common Sizes (OD Inches) | Common Grades |
| Tubing | NUE (Non-Upset) | 1.050" to 4-1/2" | J55, N80, L80, P110 |
| Tubing | EUE (External Upset) | 1.050" to 4-1/2" | J55, N80, L80, P110 |
| Casing | STC (Short Round) | 4-1/2" to 20" | H40, J55, K55 |
| Casing | LTC (Long Round) | 4-1/2" to 20" | J55, K55, N80, L80, P110 |
| Casing | BTC (Buttress) | 4-1/2" to 20" | J55, K55, N80, L80, P110 |
API CASING COUPLINGS - SHORT THREAD (STC)
API CASING COUPLINGS - LONG THREAD (LTC)
API CASING COUPLINGS - BUTTRESS THREAD (BTC)
API TUBING COUPLINGS - EXTERNAL UPSET END (EUE)
API TUBING COUPLINGS - NON UPSET END (NUE)
Application of API 5CT Couplings
Connection: Providing a secure mechanical link between pipe joints.
Pressure Sealing: Maintaining a leak-proof seal under high internal and external pressures.
Support: Carrying the weight of the entire casing or tubing string suspended in the well.
Corrosion Resistance: Specially treated couplings are used in "Sour Service" ( H2S environments).
Process of API 5CT Couplings
The manufacturing of couplings is more complex than standard pipe due to the precision required for threads:
Raw Material Selection: Using API 5CT compliant coupling stock (heavy-wall seamless pipes).
Cutting: Cutting the coupling stock into specific lengths based on the pipe diameter and thread type.
Heat Treatment: Normalizing or Quenching & Tempering to reach the required mechanical grade (e.g., N80, P110).
Threading: CNC machining of internal threads (EUE, NUE, BTC, STC, or LTC).
Surface Treatment:
Phosphating: For low-grade couplings to prevent rust and improve lubrication.
Copper Plating: Often used for high-grade or premium connections to prevent thread galling.
Inspection: Thread gauging, Magnetic Particle Inspection (MPI), and Ultrasonic Testing (UT).
Marking & Painting: Applying color codes and API monograms.

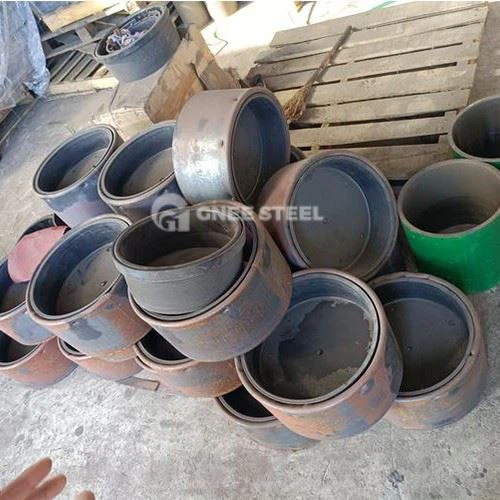

API 5CT Couplings factory
FAQ
What is Api 5ct Tubing Coupling and how does it work?
An API 5CT Tubing Coupling is a short, internally threaded pipe sleeve used to join two lengths (joints) of oilfield tubing. It acts as a female connector (the Box) that bridges the male ends (the Pins) of the tubing pipes.
How It Works:
Mechanical Connection: It is screwed onto the pipe ends using specific torque. Because it is made of high-strength steel (matching or exceeding the pipe's grade), it securely holds the weight of the entire tubing string hanging in the well.
Pressure Sealing: It features tapered threads (such as EUE or NUE). As the connection is tightened, the threads wedge together to form a metal-to-metal seal.
Leak Prevention: Specialized grease called "thread dope" is applied before assembly. This lubricates the threads to prevent damage (galling) and fills microscopic gaps to ensure a gas-tight seal against high internal pressure.
How does Api 5ct Tubing Coupling compare to traditional alternatives?
Compared to traditional alternatives like standard industrial threads or welding, API 5CT Tubing Couplings offer several distinct advantages:
Higher Strength: The External Upset (EUE) design reinforces the connection, making it stronger than the pipe body itself. This allows it to support kilometers of heavy tubing strings, whereas standard threads often weaken the pipe wall.
Superior Sealing: Precision tapered threads create a metal-to-metal seal that remains gas-tight under extreme pressure (10,000+ psi) and heat, outperforming traditional industrial gaskets that may degrade.
Operational Flexibility: Threaded couplings allow for rapid assembly and disassembly at the wellhead. This makes maintenance and pipe retrieval much easier compared to permanent welded joints.
Global Standardization: As a unified international standard, API couplings from different manufacturers are 100% interchangeable, significantly reducing procurement difficulty and inventory costs.
