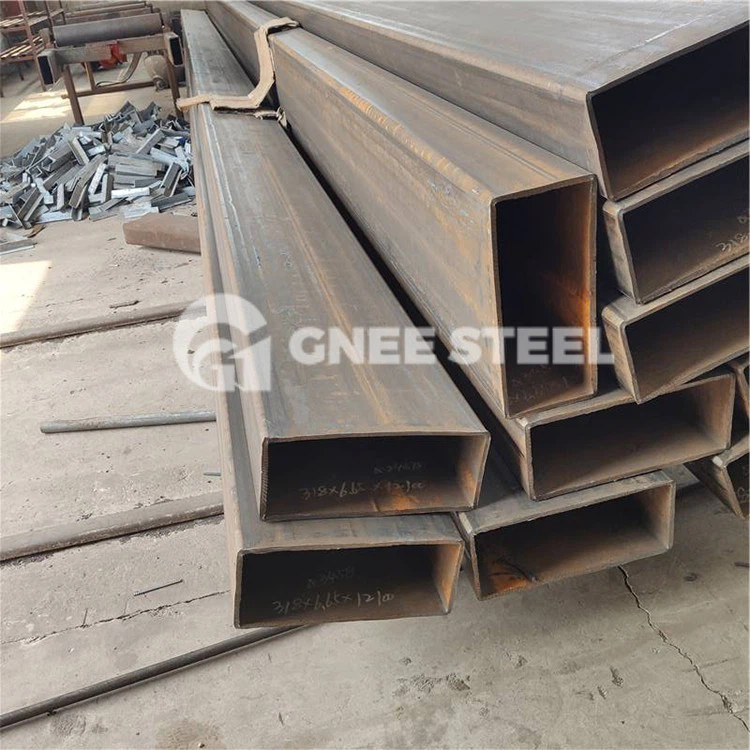

EN 10210 S355J0H Rectangular Hollow Section



EN 10210 S355J0H rectangular tubes are structural steel tubes that conform to European standards. They are suitable for manufacturing various structural steel components used in construction, engineering, and mechanical fields. These tubes have an outer dimension of up to 750mm x 500mm.

EN 10210 S355J0H Rectangular Metal Tubing Specification

Standard : BS EN 10210 - Hot finished structural hollow sections of non-alloy and fine grain steels
Grade : S355J0H
Sizes : 10mm x 15mm - 150mmx50mm - 300mmx400mm - 600mmx550mm
Wall Thickness : 0.5mm - 25mm
Length : 6000-14000 mm
Type : Welded / ERW
Dimensional Tolerances : Thickness : (All sizes +/- 10%)
Dimension Range : 21.3-914mm
Packing : In bundles, Anticorrosion heat preservation, Varnish coating, Ends can be bevelled or square cut, End Capped Certification & supplementary test, Finishing & Identity Mark

EN 10210 S355J0H Rectangular Tube Chemical Composition

Steel Grade		% by mass maximum
Steel Name	Steel Number	C specified thickness (mm)		Si	Mn	P	S	N
		<_40	> 40 <_ 120
S355J0H	1.0547	0.22	0.22	0.55	1.60	0.035	0.035	0.009

EN 10210 S355J0H Structural Rectangular Tube Mechanical Properties

Steel Grade		Minimum yield strength eH Mpa						Minimum tensile strength Rm Mpa
Steel Name	Steel Number	Specified thickness in mm						Specified thickness in mm
		<_16	>16 <_40	>40 <_63	>63 <_ 80	>80 <_100	>100 <_120	<_3	>3 <_100	>100 <_ 120
S355J0H	1.0547	355	345	335	325	315	295	510-680	470-630	450-600

EN 10210 S355J0H RHS Tube











































Detecting the squareness of EN 10210 S355J0H rectangular tubes involves three methods:

1. Diagonal method: Ensuring equal diagonals, but as discussed in the adjustment of EN 10210 S355J0H rectangular tubes - diagonal section, confidence in diagonal measurements is not high due to factors like actual corner size and measurement position.

2. Protractor measurement method: Placing one edge of the protractor against the tube surface and moving it up and down until the other edge touches any point on the tube surface, checking for light leakage. However, this method requires a flat measurement surface and emphasizes concave rather than convex surfaces.

3. "Twin inspection method": When a protractor is not available, two segments can be cut from the same rectangular tube, cleaned of burrs at the ends, placed facing each other or opposite each other (with the weld as a reference), placed on a platform, slowly brought together, and judging the squareness of the tube based on the gap position after coming together.
