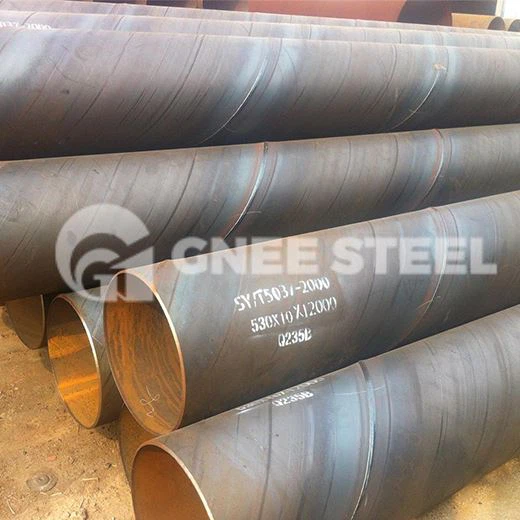

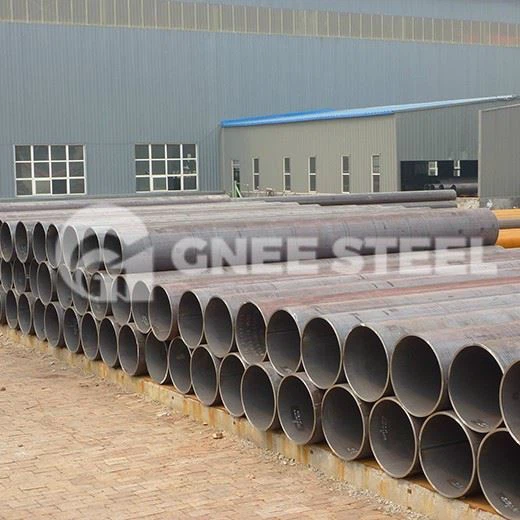

SSAW Pipe API 5L X80 Carbon Steel Pipe



API 5L X80 welded pipe is a type of high-strength, low-carbon, microalloyed pipeline steel pipe. The material has high cleanliness, fine grain size, high toughness, and good weldability. The carbon equivalent of X80 spiral carbon steel welded pipe is relatively low, with minimal hardening tendency and a reduced tendency to crack.

Chemical composition of X80:
- Carbon (C): ≤ 0.17%
- Silicon (Si): ≤ 0.45%
- Manganese (Mn): ≤ 1.85%
- Phosphorus (P): ≤ 0.020%
- Sulfur (S): ≤ 0.010%
- Vanadium (V): 0.10%
- Niobium (Nb): ≤ 0.06%
- Titanium (Ti): ≤ 0.06%

Mechanical properties:
- Yield strength: 555 MPa to 705 MPa
- Tensile strength: 625 MPa to 825 MPa
- Yield ratio: ≤ 0.93

API 5L X80 SSAW Steel Pipe Specification

Standard	API 5L
Type	SSAW/ Welded
Outer Diameter	213MM-3048MM
Wall thickness	4.5MM-25.4MM
Length	6M, 9M, 12M
Process	Hot/Cold Rolled,Hot work,Cold drawn
Surface	3LPE, 3PP, FBE,Varnish coating/oil

API 5L X80 Spiral Welded Pipe











































API 5L X80 spiral steel pipes should undergo mechanical performance tests, flattening tests, and expansion tests, meeting the requirements specified in the standards. The pipes should withstand a certain internal pressure, and if necessary, undergo a 2.5 MPa pressure test, maintaining leak-free conditions for one minute. The use of eddy current testing is allowed as a substitute for hydraulic testing. Eddy current testing is carried out in accordance with the standard GB7735 "Eddy Current Testing Method for Steel Pipes". The eddy current testing method involves fixing the probe on the frame, maintaining a distance of 3 to 5 mm from the weld seam, and conducting a comprehensive scan of the weld seam by relying on the rapid movement of the steel pipe. The testing signals are automatically processed and sorted by the eddy current testing instrument to achieve the purpose of testing.
