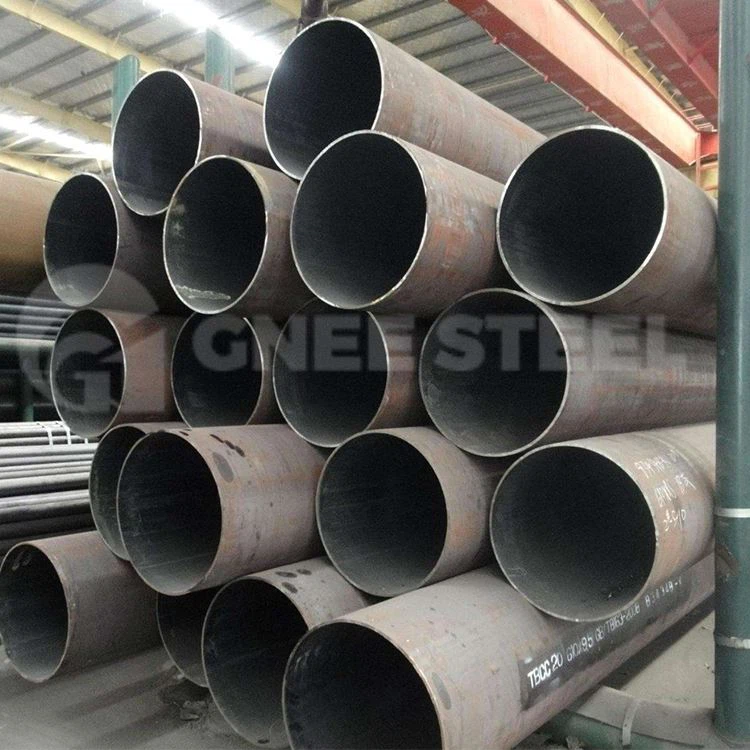

EN10217 P195 TR1 TR2 ERW Pipe
EN10217 P195TR1 TR2 Welded steel tubes for pressure Description
EN10217 P195TR1 TR2 electric resistance welded pipe is a room temperature pressure pipe.
Chemical composition of P195TR1TR2 welded pipe: carbon: ≤0.13, silicon: ≤0.35, manganese: ≤0.70
Yield strength: 185-198Mpa, tensile strength: 320-440Mpa.
GNEE Group, as a well-known manufacturer and exporter of pressure welded steel pipes in China, can provide you with high-quality and qualified EN10217 P195TR1 TR2 high-pressure pipes, electric resistance welded pipes, etc. All welded pipes are tested by eddy current test, ultrasonic flaw detection test, chemical element test, hardness test, flaw detection test and other tests before leaving the factory. If you need, please contact us immediately.
Resistance welding process
The resistance heat generated by the current passing through the edge of the tube blank is used to melt the metal, and welding is achieved under pressure. It is divided into two forms: low frequency and high frequency, with the advantages of high efficiency and continuous production.
Material properties
Material: Carbon steel (grade P195TR1/P195TR2), taking into account both cost and weldability.
Temperature resistance: Adapt to high temperature/low temperature conditions, nominal temperature range -20℃~300℃.
Core advantages
- Reliable pressure bearing performance
Designed for conveying pressure media such as liquids and gases, it can meet the pressure vessel requirements of industrial pipeline systems.
- Production efficiency and economy
The resistance welding process has a fast continuous forming speed, and the production cost is significantly lower than that of seamless pipes, and supports customized large-diameter specifications (up to 3 meters in diameter).
- Corrosion resistance adaptability
The surface can be additionally plated or 3PE anti-corrosion treated to extend the service life in weakly corrosive environments (such as industrial atmosphere and fresh water)
EN10217 TR1 TR2 Welded Steel Pipe Specification
| Item | Electric Resistance Welding Steel Pipe |
| Material | EN10217,EN10219,ANSI B36,ASTM A53-2007,ANSI B36 |
| Wall Thickness | 6.5-60mm |
| Length | 6m,11.8m,12m,other length is available according to demands |
| Size | 219-2200mm |
| Surface Treatment | Black Paint, Varnish, Oil, Galvanized, Anti-corrosion coated (3PE,3lpe) |
| Pipe Ends | Two ends of the beveled ends, plastic, CAPS(small OD), iron protector(large OD), pipe ends with steel support for thin wall |
| Certificates | API 5L, ISO 9001, SGB, BV, CCIC |
| Application | Aetospace, structure pipe, building, etc |
| Delivery | 15-45 Days, It depends on the specific situation and quantity |
